Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Lead Wire: | Copper, , Fiberglass Silicon |
| Insulation Material: | MgO | Heating Element: | Nichrome Resistance |
| Screw Threads: | Available | Flange Washer: | Available |
| Connection: | Screw Fitting | ||
| Highlight: | cast aluminum heaters,Cast In Heaters |
||

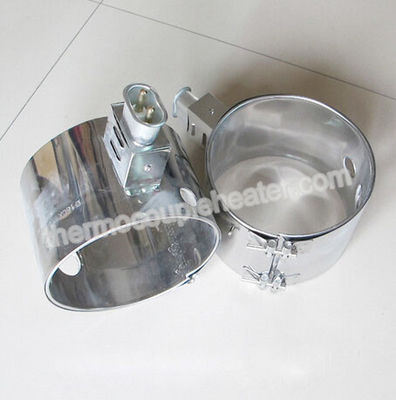

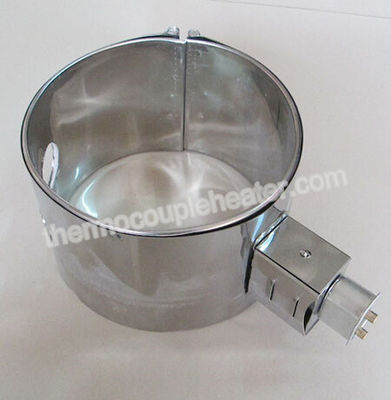

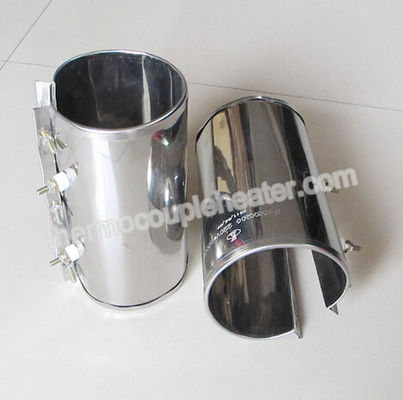

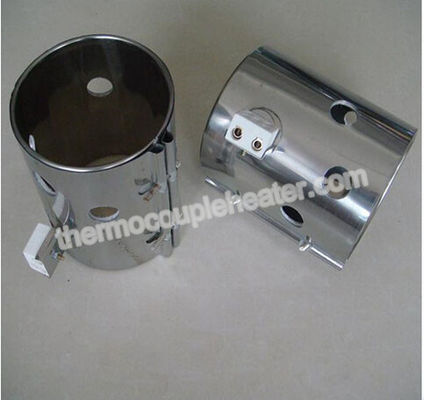

Industrial Insulated Stainless Steel High Temperature Electrical Air band Heater
Description:
1) Mica Insulated Stainless Steel Band Heater is one kind heating element of making resistance twist on insulation mica sheet.
2) Mica Insulated Stainless Steel Band Heater ( heater plate ) use good insulation property mica and heat-resistant property, mica plate ( sheet ) as support and insulation layer, stainless steel board as support protection sheath
3) Mica Insulated Stainless Steel Band Heater can be made as plate shape, sheet shape, column shape, canister shape, band shape etc different shapes heating element. Mica Insulated Stainless Steel Band Heater can be designed high power as 1000W, max temperature 300 °C.
Specification:
1).Material: Heating element: nickel chrome wire or FeCr ;
Sheath material: stainless steel316/304/321/310/201;
Insulation material: mica;
2). Min Height: 25mm
3).Watt Densities: 3w/cm2(stainless steel), 4.5w/cm2(brass), 6.5w/cm2(ceramic insulation)
4).Standard voltages: 120, 240, 480, or 600 volts
5) Estimated life in excess of 10,000 hour
6) Operating temperature up maximum of 500 ℃
|
SIZE(MM)
|
WATT(W)
|
SIZE
|
WATT
|
SIZE
|
WATT
|
SIZE
|
WATT
|
|
Ø25×25
|
120
|
Ø32×25
|
115
|
Ø38×25
|
140
|
Ø45×25
|
160
|
|
Ø25×30
|
120
|
Ø32×30
|
140
|
Ø38×30
|
160
|
Ø45×30
|
185
|
|
Ø25×32
|
120
|
Ø32×32
|
150
|
Ø38×32
|
170
|
Ø45×32
|
200
|
|
Ø25×35
|
130
|
Ø32×35
|
160
|
Ø38×35
|
190
|
Ø45×35
|
225
|
|
Ø25×38
|
140
|
Ø32×38
|
175
|
Ø38×38
|
200
|
Ø45×38
|
240
|
|
Ø25×40
|
150
|
Ø32×40
|
180
|
Ø38×40
|
225
|
Ø45×40
|
250
|
|
Ø25×45
|
165
|
Ø32×45
|
200
|
Ø38×45
|
270
|
Ø45×45
|
275
|
|
Ø25×50
|
180
|
Ø32×50
|
230
|
Ø38×50
|
275
|
Ø45×50
|
325
|
|
Ø30×25
|
120
|
Ø35×25
|
130
|
Ø40×25
|
140
|
Ø50×25
|
180
|
|
Ø30×30
|
130
|
Ø35×30
|
150
|
Ø40×30
|
175
|
Ø50×30
|
220
|
|
Ø30×32
|
140
|
Ø35×32
|
160
|
Ø40×32
|
180
|
Ø50×32
|
235
|
|
Ø30×35
|
150
|
Ø35×35
|
175
|
Ø40×35
|
200
|
Ø50×35
|
250
|
|
Ø30×38
|
160
|
Ø35×38
|
190
|
Ø40×38
|
220
|
Ø50×38
|
280
|
|
Ø30×40
|
175
|
Ø35×40
|
200
|
Ø40×40
|
230
|
Ø50×40
|
300
|
|
Ø30×45
|
200
|
Ø35×45
|
225
|
Ø40×45
|
250
|
Ø50×45
|
325
|
|
Ø30×50
|
220
|
Ø35×50
|
250
|
Ø40×50
|
280
|
Ø50×50
|
375
|
Application:
1.Widely used in home electric equipments, such as electric rice cooker, micro-wave oven, electric disinfection cabinet, air blower, electric iron etc.
2. Commonly used in different machine devices as heating unit, such as plastic-envelop machine, copy machine, print machine, fax etc.
3. Used in machinery kinds heating space of industry and agriculture, such as mould heating, plastic machine and other warm, dryer device.
Advantage:
1. Heat-resistant, endure high temperature as 300°C.
2. Good insulation property, insulation resistance is bigger than 100.
3. Light weight, thin thickness, small volume, big power.
4. The band heater can be easily designed any shapes according to demand, low cos
Other Info:
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
