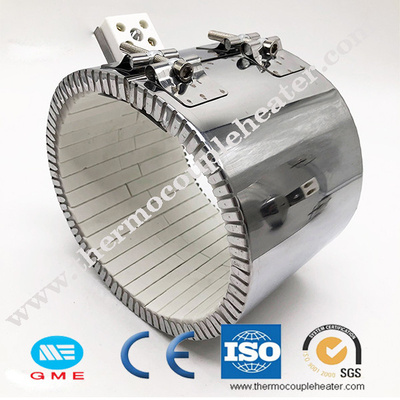

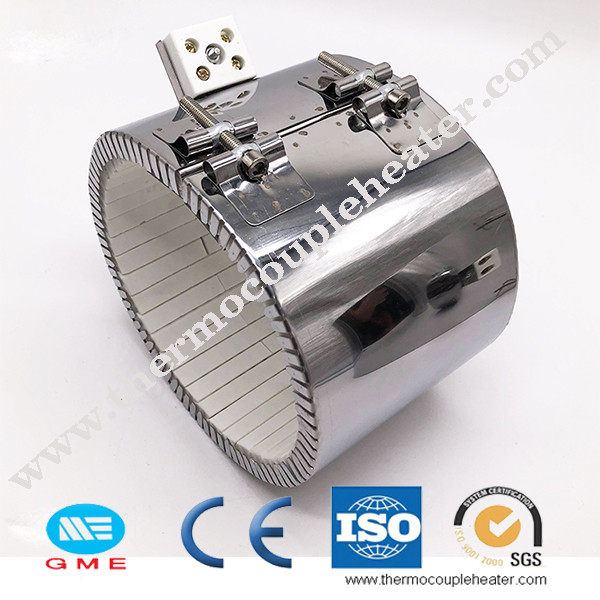

High Efficiency Instant Ceramic Heater Band For Extrusion Mould

Large Image : High Efficiency Instant Ceramic Heater Band For Extrusion Mould

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	220v, 110v 10v 220v	Sheath Material:	Stainless Steel Or Nickel
Minimum ID:	25mm	Name:	Ceramic Band Heater For Injection Molding Machine
Lead Wire:	Copper, , Fiberglass Silicon	Shape:	Cylinder
Power:	0-90000KW	Heating Elements:	Nickel Chrome Wire
Highlight:	Instant Ceramic Heater Band , Extrusion Mould Ceramic Heater Band , 25mm Ceramic Cast Heater

High Efficiency Instant Ceramic Heater Band For Extrusion Mould

Description:

220v 1500w High efficiency instant ceramic heater band for extrusion are medium-to-high temperature heaters that have 500℃ as a maximum working temperature. They provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications.
Ceramic band heaters are available with different terminal styles, are fully flexible, and can accommodate holes and cut-outs. GME Factory engineering is available to assist with the design and development of special heaters for particular requirements

Specification:

Gap Between the Clamping Edge	5 - 10mm
Power Tolerance	+5% to -10%
Resistance	-5% to +10%
Insulation Resistance (Cold)	≥20 MΩ
Sheath Material	Stainless Steel cover ,High Temperature Plate
Connection Method	Metal box Screw post terminals High Temperature Plug High temperature cable Ceramic block
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Heating Elements (coil)	NiCr 80:20
Lead Wire Terminals	1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire

Easy to install

Long service life

Good Temperature Uniformity

Highly flexible, durable

Quick to respond to controls Two-Piece Bands are available per request

High Efficiency Instant Ceramic Heater Band For Extrusion Mould 0

Application:

* For heating the nozzles of Injection Molding

* Machines
* Extruders
* Blown film dies
* Nozzles of Injection molding machines
* Other cylinder heating applications
* All Plastic & Rubber Processing Machinery

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
