|Product Name:||Thermocouple Extension Wire||Max Temperature:||400℃|
|Wire Size:||Customer’s Request||Conductor Insulator Material:||Fiberglass|
|Jacket:||Stainless Steel||Structure:||FB AND FB AND SS|
type k thermocouple extension wire,
compensating cable for k type thermocoupl

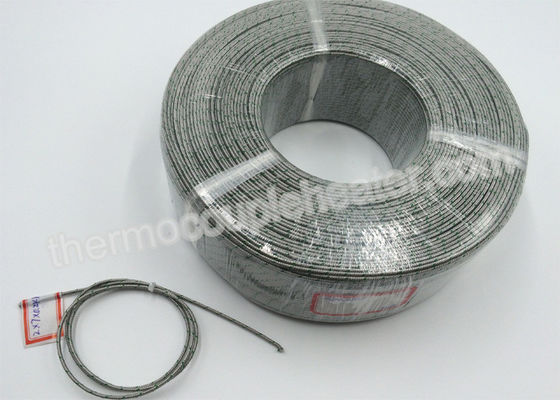

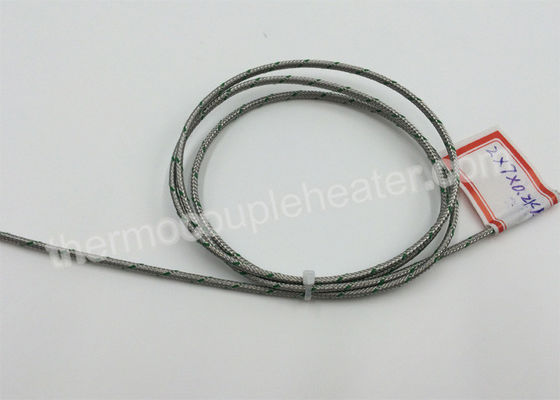

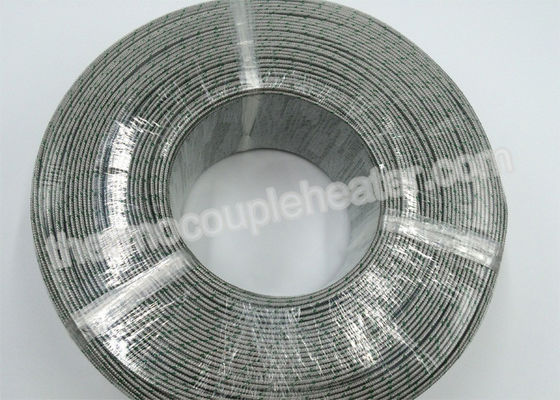

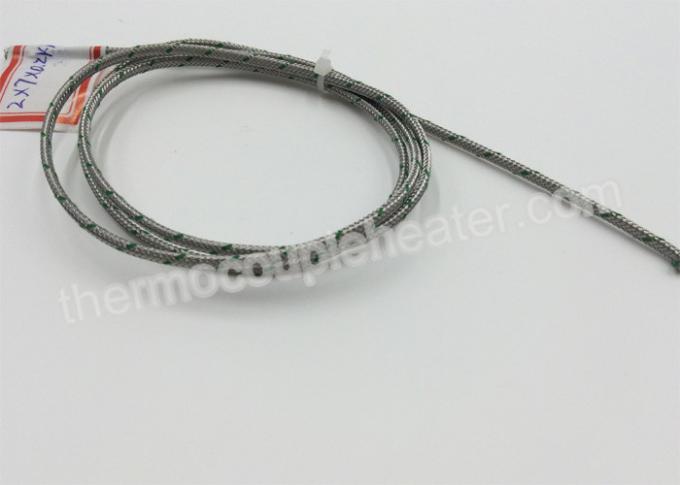

Fiberglass And Fiberglass And SS Braided Thermocouple compensating Wire
Thermocouple Compensating Cable (FB+FB+SS), conductor are fiberglass insulated, overall fiberglass jacket, and stainless steel braided shielding. Max. Environment temperature 400 ℃. Impregnated with silicone varnish is available upon request. Tinned brass for shielding is available.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
1 Calibration: K, J, T, E, N, S, R
2 Conductor insulation material: Fiberglass
3 Inner shield material: SSB
4 Jacket insulation material: Fiberglass and stainless steel braided shielding
5 Outer shield material: SSB
|K||Wire size||Section (mm’)||AWG|
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
Thermocouple cable not only measurement errors but also can improve physical and mechanical properties of thermocouple line
Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
