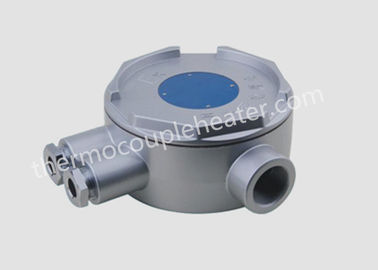

Stainless Steel Waterproof Thermocouple Head for Cable Connection , UL

Stainless Steel Waterproof Thermocouple Head for Cable Connection , UL

Stainless Steel Waterproof Thermocouple Head for Cable Connection , UL

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD 2.5-10 FOB Shanghai/PC
Packaging Details: Export Carton Package or as Customer Request
Delivery Time: 7-15 Working Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Product Name: Temperature Sensor Accessory Application: Thermocouple Protection
Material: Aluminum ADC12 Painting: Lacquer Painting Polyester Powder Coating
Function: Sensor Protection Feature: Standard Wire Entry And Probe Entry
High Light:

rtd connection head


temperture sensor component

Temperature Sensor Accessory of Connection Head for Cable Connection and Protection


1. Description:


It is fabricated thermocouple measuring temperature sensor, and often display meter, recording meter and electronic regulator of process control system, in order to direct measurement or control in the production of a variety of 0 ℃ to 1800 ℃ in the scope of liquid, vapor and gas medium, as well as the temperature of the solid surface, simple assembly, easy to change, press reed temperature sensing element, ant-vibration performance is good, lost measuring range, high mechanical strength, good compression performance, widely used in electric power, thermal power, metallurgy, medicine, chemical industry, machinery manufacturing, etc.

2. Specifications:

1. Thermocouple head

2. Type: all type available

3. Material: Aluminum(ADC-12), Stainless steel

4. Standard wire entry and probe entry;

5. Wide range of specification;

6. High precision painting

7. Accessory: cover sealing and cable gland sealing in silicone free material

8. Protection level: IP65 of IEC529 Enclosure protection class

9. Place of Origin: China (Mainland)

10. Eco-friendly: Yes

11. MOQ: 50PCS

12. Certificate: ISO,

13. Making sample time: all type in stock

14. Trade term: FOB, EXW, CIF, CFR

15. Payment term: T/T, Western Union, Paypal

16. Wire entry :M33*2,M33*2

17. Probe entry: M42*2


3. Technical Drawing:


Stainless Steel Waterproof Thermocouple Head for Cable Connection , UL


4. Description:


Thermocouple heads making connection between thermocouple and extension wire and protect the connection against corrosion, abrasion and breakage caused by handling. And It is easy to install and are convenient for checking purposes.


With Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants.

The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast cover provide for removal by means of a screwdriver or wrench..


 An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience.A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Weatherproof Head




5. Competitive Advantage:


1. Beautiful outlook and good performance
2. High precision painting
3. Excellent corrosion resistance
4. Moisture and dust-resistant
5. Make head with logo according to your demand
6. Suitable for all kinds of thermocouple or thermal resistance
7. Small minimum order quantity
8. All sizes available
