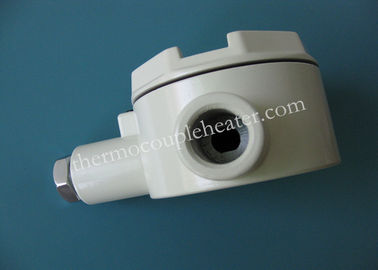

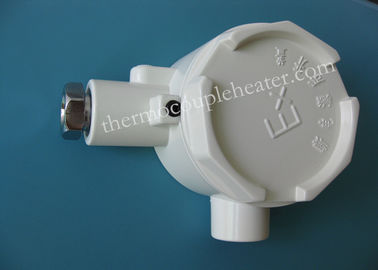

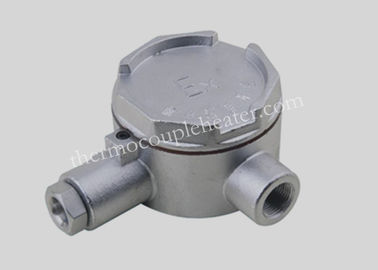

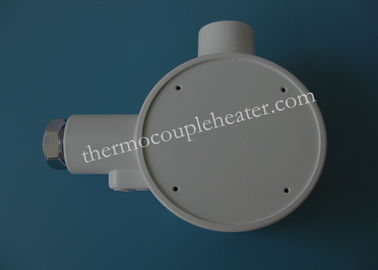

Anti - Explosion Temperture Sensor Components Connection Thermocouple Head

Anti- Explosion Thermocouple Connection Head of Temperture Sensor Components

1. Description:

It is fabricated thermocouple measuring temperature sensor, and often display meter, recording meter and electronic regulator. Of process control system, in order to direct measurement or control in the production of a variety of 0 ℃ to 1800 ℃ in the scope of liquid, vapor and gas medium, as well as the temperature of the solid surface, simple assembly, easy to change, press reed temperature sensing element, ant-vibration performance is good, lost measuring range, high mechanical strength, good compression performance, widely used in electric power, thermal power, metallurgy, medicine, chemical industry, machinery manufacturing, etc.

2. Specifications:

1. Thermocouple head

2.Type: all type available

3. Material: Aluminum(ADC-12), Stainless steel

4. Wire entry: M20*1.5

5. Probe entry: M22*1.5, M20*1.5

6. Standard wire entry and probe entry;

7. Wide range of specification;

8. High precision painting

9. Accessory: cover sealing and cable gland sealing in silicone free material

10. Protection level: IP65 of IEC529 Enclosure protection class

11. Place of Origin: China (Mainland)

12. Eco-friendly: Yes

13. MOQ: 50PCS

14. Certificate: ISO,

15. Making sample time: all type in stock

16. Trade term: FOB, EXW, CIF, CFR

17.  Payment term: T/T, Western Union, Paypal

3. Technical Drawing:

4. Description:

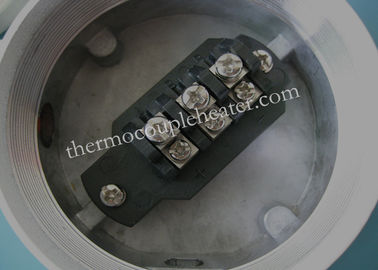

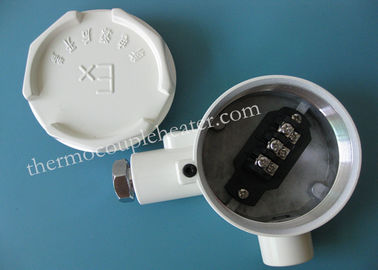

Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling.

Thermocouple heads are easy to install and are convenient for checking purposes.

An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience.A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Weatherproof Head

With Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants.

The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast cover provide for removal by means of a screwdriver or wrench..

5. Competitive Advantage:

1. Beautiful outlook and good performance

2. Suitable for all kinds of thermocouple or thermal resistance

3. Small minimum order quantity

4. All sizes available

5. Make head with logo according to your demand

6. Excellent corrosion resistance

7. Moisture and dust-resistant

8. High precision painting
