Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
|Place of Origin:||China|
|Minimum Order Quantity:||100pcs|
|Price:||USD 2.5-10 FOB Shanghai/PC|
|Packaging Details:||Export Carton Package or as Customer Request|
|Delivery Time:||7-15 Working Days|
|Payment Terms:||T/T, Western Union, L/C,PayPal|
|Product Name:||DANA Thermocouple Connection Head||Application:||Temperature Sensor And RTD|
|Probe Entry:||M24*1.5, M16*1, G1/2’’, NPT1/2’’||Wire Entry:||M20*1.5, NPT1/2’’, G1/2’’|
|Founction:||Anti Corrosion||Feature:||Standard Wire Entry And Probe Entry|
rtd connection head,
temperture sensor component

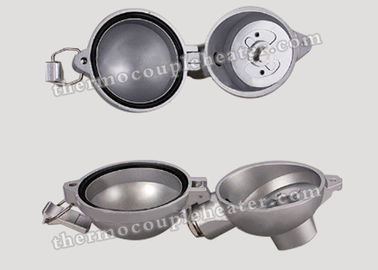

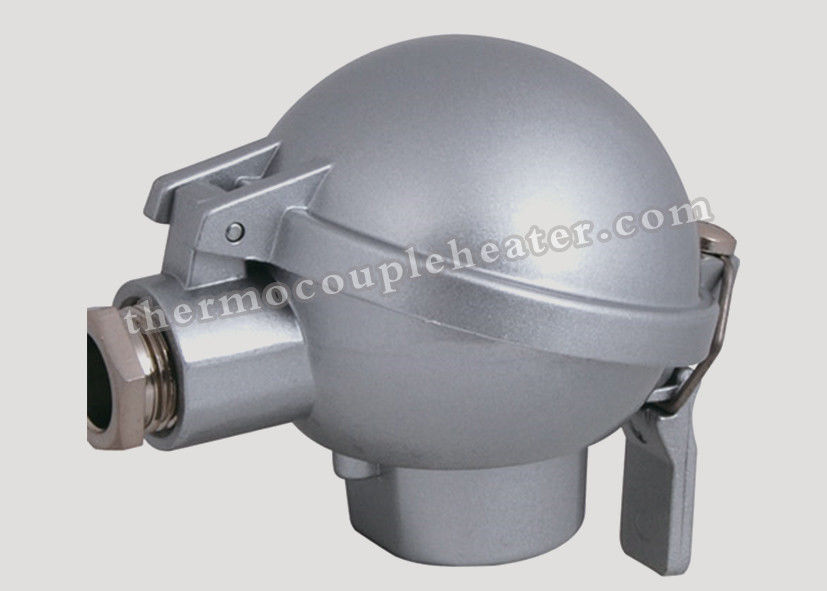

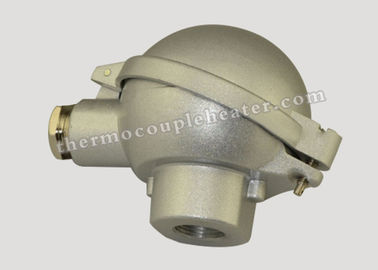

DANA Thermocouple Connection Head Assembled with Temperature Sensor and RTD
Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling. Thermocouple heads are easy to install and are convenient for checking purposes. An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.
General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Aluminum head weighs 10 ounces; cast iron head weighs 27 ounces.
Weatherproof Head with Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants. The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast
1. DANA Thermocouple head
2. Type: DANA, all type available
3. Material: Aluminum(ADC-12), Stainless steel
4. Wire entry: M20*1.5, NPT1/2’’, G1/2’’
5. Probe entry: M24*1.5, M16*1, G1/2’’, NPT1/2’’
6. Standard wire entry and probe entry;
7. Wide range of specification;
8. High precision painting
9. Material: Aluminum Alloy,
10. Approved IEC529 IP65
11. Terminal block: 2P, 3P, 4P, 6P ,8P
12. Terminal block material: bakelite or ceramic.
13. Accessory: cover sealing and cable gland sealing in silicone free material
14. Protection level: IP65 of IEC529 Enclosure protection class
15. Place of Origin: China (Mainland)
16. Eco-friendly: Yes
17. MOQ: 50PCS
18. Certificate: ISO,
19. Making sample time: all type in stock
20. Trade term: FOB, EXW, CIF, CFR
21. Payment term: T/T, Western Union, Paypal
3. Technical Drawing
• Excellent appearance with fine finish.
• Assembling easily.
• Available for Spring-loaded blocks.
• H=19 33 36 40mm size is suitable for various types of blocks, an international design.
• Can assemble with thermocouple and RTD
5. Competitive Advantage:
1. Beautiful outlook and good performance
2. Suitable for all kinds of thermocouple or thermal resistance
3. Small minimum order quantity
4. All sizes available
5. Make head with logo according to your demand
6. Excellent corrosion resistance
7. Moisture and dust-resistant
8. High precision painting
9. Mullti explosion-proof type, good explosion-proof performance
10. Wide measuring range
11. High mechanical strength and good pressure-resistant performance
12. Certain modification can be done according to your designs
