Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE/UL/CSA/ISO |
Model Number: | SI+SI |
Minimum Order Quantity: | 1000Meter |
---|---|
Price: | USD 0.5-3.0 FOB Shanghai /Meter |
Packaging Details: | Export Carton Package |
Delivery Time: | 7-15 Working Days |
Payment Terms: | T/T, L/C, Western Union, PayPal |
Supply Ability: | 100000Meter/Month |
Product Name: | RTD Cable | Max Temperature: | 200℃ |
---|---|---|---|
Wire Size: | As Customer’s Request | Conductor Insulator Material: | Silicon Rubber |
Jacket: | Silicon Rubber | Structure: | SI+SI |
Highlight: | extension grade thermocouple wire,compensating cable for k type thermocoupl |

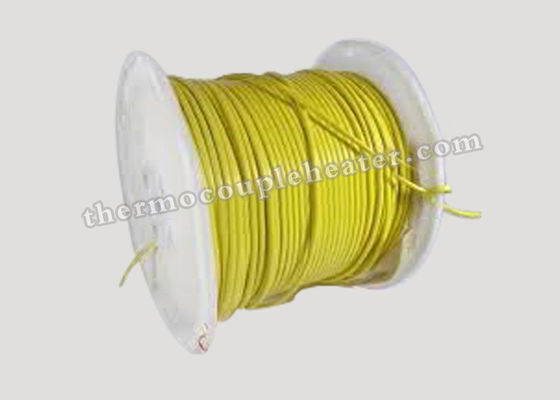

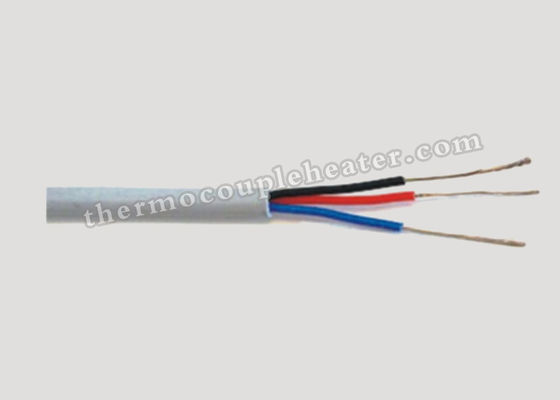

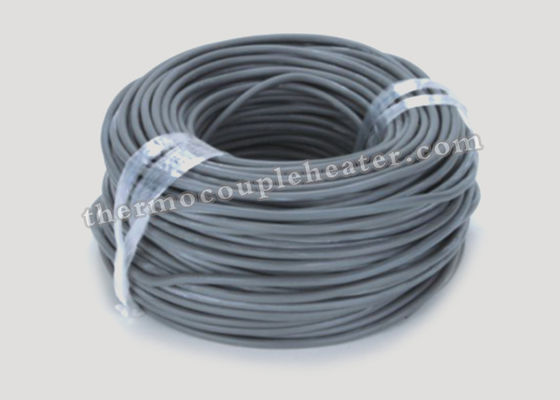

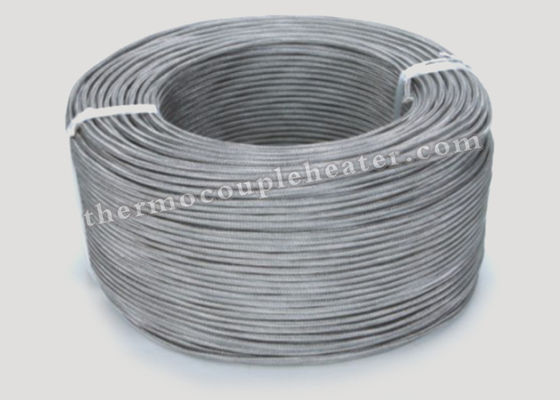

RTD Thermocouple Compensating Cable with Silicon Rubber Insulated Conductor and Silicon Rubber Jacket (SI+SI )
Specifications:
1. Conductor insulation material: Silicon rubber
2. Inner shield material: SSB
3. Jacket insulation material: silicon rubber
4. Outer shield material: SSB
Type |
|
Contractors |
Color Code |
||
|
Wire size |
Section (mm’) |
AWG |
|
|
|
2X1/0.2 |
|
32 |
FB+FB |
ANSI |
|
2X1/0.5 |
|
24 |
FB+FB |
DIN |
|
2X1/0.65 |
|
22 |
FB+FB |
IEC |
|
2X1/0.8 |
|
20 |
FB+FB |
JIS |
|
2X7/0.2 |
|
24 |
FB+FB |
BS |
|
2X7/0.3 |
|
20 |
FB+FB |
NFC |
|
|
|
20 |
FB+FB |
|
Description:
RTD extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.
RTD extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy. Omega offers straight wire as well as retractable TPE (thermoplastic elastomeric) cable style wire.
Practical for use in connecting between a thermocouple sensor and a readout, extension wire comes in as large a variety as our thermocouple wire.
Thermocouple Extension and Compensating Cables
It is often necessary to locate the cold junction of the thermocouple in a larger distance from the measuring point due to safety concerns or constructional reasons. For the connection between the two points, thermocouple extension and compensating cables are used.
The application range for these cables is limited in most standards to a temperature of -25 °C (-13 °F) to +200 °C (+400 °F), or depends on the temperature resistance of the insulation material used. The insulation material is to be selected in order to fulfill the requirements at site concerning chemical and heat resistance, moisture protection and other technical requirements.
Applications:
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
Competitive Advantage
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
