Product Name: | Water Or Air Cooling Manufacturing Process Die Casting Aluminum Band Heater | Application: | Industrial Heating |
---|---|---|---|
Voltage: | 120, 240, 480 Standard , Special Voltage To Order. | Wattage: | Aluminum Up To 35 W/in2 Bronze Up To 50 W/in |
Alloy Material Casted: | Aluminum Or Bronze | Heating Wire: | Nickel Chrome Wire |
Highlight: | cast aluminum heaters,Cast In Heaters |

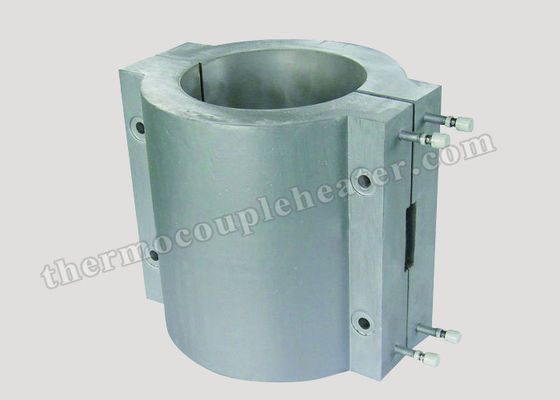

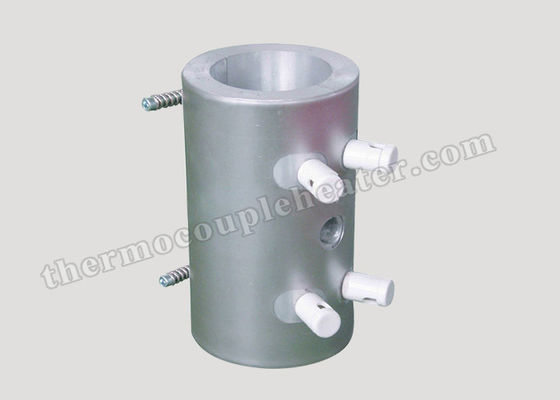

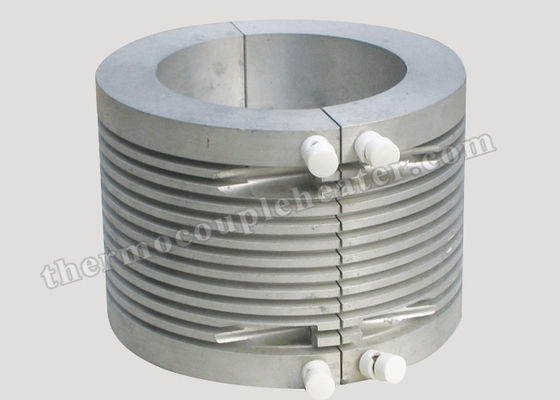

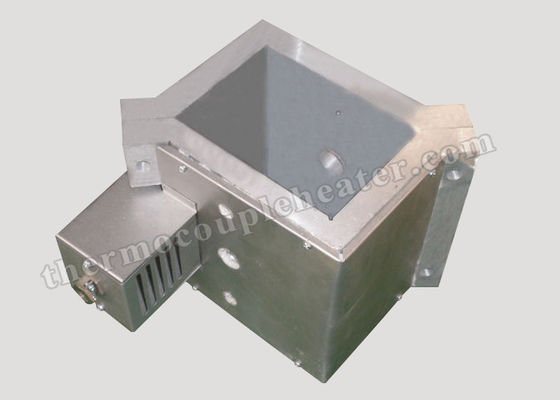

Water Or Air Cooling Manufacturing Process Die Casting Aluminum Band Heater
Description
Cast-in heater is a tubular electric heating element for heating body, and bending molding, into the mold with high quality metal alloy material for shell in centrifugal cast into various shapes, a round, flat, rectangular, air-cooled, water-cooled and other special-shaped etc.. After finishing it and heated body tightly, Metal casting heater is a kind of high efficiency heat uniformity division of the heater, thermal conductivity, excellent metal alloy, ensure the hot surface temperature uniformity, eliminating equipment hot and cold spots. With long life, good insulation properties, mechanical properties, corrosion resistance, magnetic resistance etc.. The outer radiating surface increases thermal insulation device, within the radiating surface of sintering infrared which can save 35% of electricity.
Specification
Size |
Customized |
Voltage |
120, 240, 480 Special voltage to order |
Wattage |
Aluminum 35 watts/sq |
Bronze 50 watta/sq |
|
Max Temperature |
Aluminum 700 deg |
Bronze 1000 deg |
|
Option |
cooling tube |
end fitting |
Cast Materials |
Max Operating Temperature |
Aluminum |
371°C |
Bronze/Copper alloys |
769°C |
Iron |
482°C |
Feature
1. High efficiency heat uniformity division of the heater
2. Hot surface temperature uniformity
3. Save 35% of electricity
4. Cast aluminum surface load can reach 2.5-4.5w / cm2, maximum operating temperature 400-500 °C;
5. Cast copper surface load can reach 3.5-5.0w / cm2, maximum operating temperature 600-700 °C;
6. Cast iron surface load can reach 4.5-6.0w / cm2, maximum operating temperature 800-850 °C.
Application
Widely used in Extrusion industries, Injection Moulding , Vaccum Forming Compression Moulding, etc.
