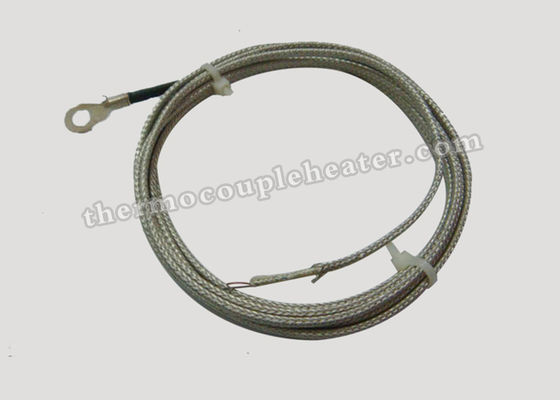

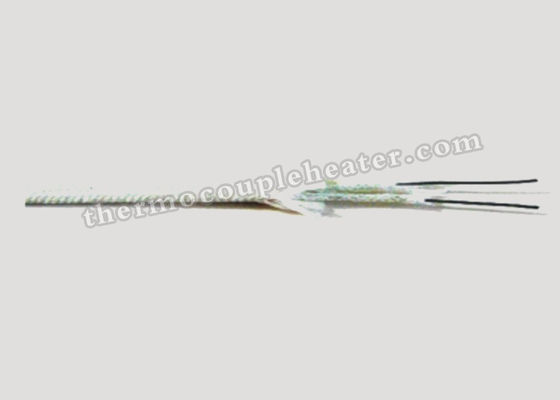

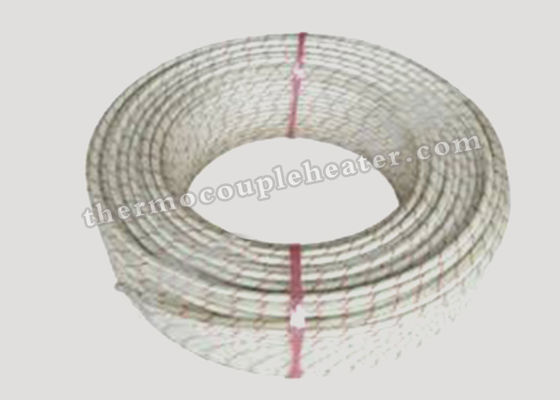

Thermocouple Compensating Cable with Quartz Fiber Insulated Conductor and Quartz Fiber Jacket (QF+QF)
Specifications:
1. Calibration: K, J, T, E, N, S, R
2. Conductor insulation material: Quartz fiber
3. Inner shield material: SSB
4. Jacket insulation material: Quartz fiber
5. Outer shield material: SSB
6. Max temperature :1000℃
7. Structure : QF+QF
Type |
| Contractors | Color Code | ||
K | Wire size | Section (mm’) | AWG |
|
|
J | 2X1/0.2 |
| 32 | FB+FB | ANSI |
E | 2X1/0.5 |
| 24 | FB+FB | DIN |
T | 2X1/0.65 |
| 22 | FB+FB | IEC |
N | 2X1/0.8 |
| 20 | FB+FB | JIS |
S | 2X7/0.2 |
| 24 | FB+FB | BS |
| 2X7/0.3 |
| 20 | FB+FB | NFC |
|
|
| 20 | FB+FB |
|
Description:
Conductors are quartz fiber insulated, overall quartz fiber jacket. Max environment temperature 1000℃.
Thermocouple extension and compensating cables are designed for interconnection between thermocouple probes and control instrument. They are generally available in the following types. All of the above types of cable can be supplied unscreened or screened (Individually, collectively or both) with an Aluminum / Polyester tape screen incorporating tinned copper drain wires. Alternative insulation and sheathing materials can also be used, details available upon request.
Applications:
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.
Customers from different areas possibly require different color style for the cable, all color standard are available upon request.
Competitive Advantage:
Our measurement accuracy of thermocouple cable can reach the level of grade 1;10,000 meters without joints:The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC…etc)
