| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE/UL/CSA/ISO |
| Model Number: | SI+SI |
| Minimum Order Quantity: | 1000Meter |
|---|---|
| Price: | USD 0.5-3.0 FOB Shanghai /Meter |
| Packaging Details: | Export Carton Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 100000Meter/Month |
| Product Name: | Thermocouple Cable | Max Temperature: | 200℃ |
|---|---|---|---|
| Wire Size: | As Customer’s Request | Conductor Insulator Material: | Silicon Rubber |
| Jacket: | Silicon Rubber | Structure: | SI+SI |
| High Light: | type k thermocouple extension wire,extension grade thermocouple wire |
||

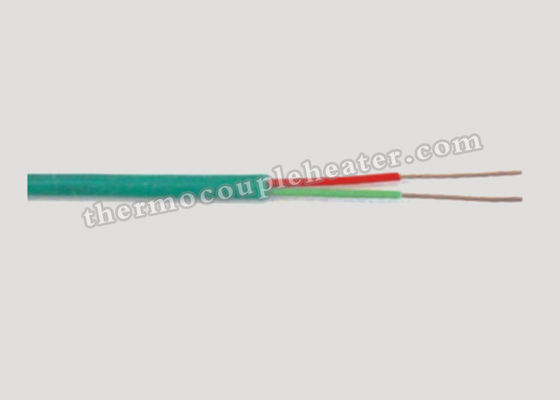

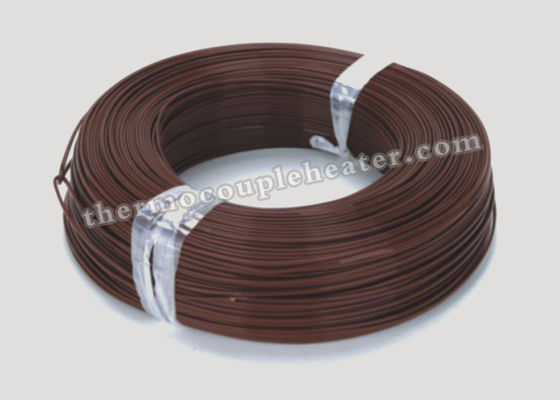

Thermocouple Compensating Cable with Silicon Rubber Insulated Conductor and Silicon Rubber Jacket (SI+SI)
Specifications:
1. Calibration: K, J, T, E, N, S, R
2. Conductor insulation material: silicon rubber
3. Inner shield material: SSB
4. Jacket insulation material: silicon rubber
5. Outer shield material: SSB
6. Max temperature :200℃
7. Structure : Silicon rubber
Type |
| Contractors | Color Code | ||
K | Wire size | Section (mm’) | AWG |
|
|
J | 2X1/0.2 |
| 32 | FB+FB | ANSI |
E | 2X1/0.5 |
| 24 | FB+FB | DIN |
T | 2X1/0.65 |
| 22 | FB+FB | IEC |
N | 2X1/0.8 |
| 20 | FB+FB | JIS |
S | 2X7/0.2 |
| 24 | FB+FB | BS |
| 2X7/0.3 |
| 20 | FB+FB | NFC |
|
|
| 20 | FB+FB |
|
Description:
Thermocouple and RTD extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.
Practical for use in connecting between a thermocouple sensor and readout, extension wire comes in as large a variety as our thermocouple wire.
Applications:
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.
Customers from different areas possibly require different color style for the cable, all color standard are available upon request.
Competitive Advantage:
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
