| Product Name: | Thermocouple Cable | Max Temperature: | 200℃ |
|---|---|---|---|
| Wire Size: | As Customer’s Request | Conductor Insulator Material: | PVC |
| Jacket: | PVC | Structure: | PVC+PVC |
| High Light: | type k thermocouple extension wire,compensating cable for k type thermocoupl,Thermocouple Wire With PVC Jacket |
||

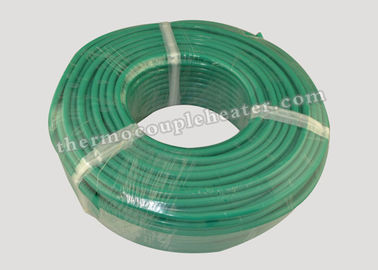

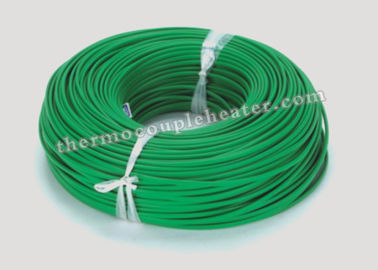

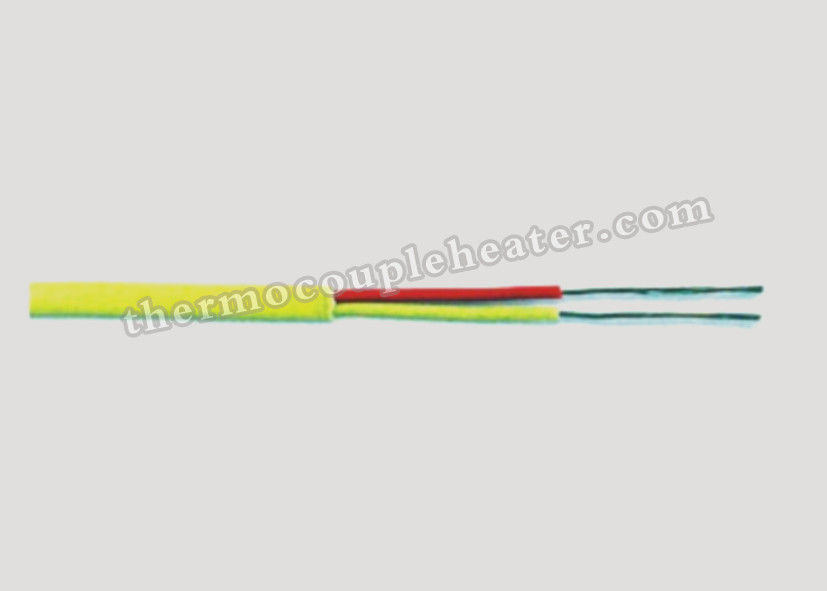

Thermocouple Compensating Cable and Extension Wire with PVC Insulated Conductor and PVC Jacket(PVC+PVC)
Specifications:
1. Calibration: K, J, T, E, N, S, R
2. Conductor insulation material: PVC
3. Inner shield material: SSB
4. Jacket insulation material: PVC
5. Outer shield material: SSB
6. Max temperature:105℃

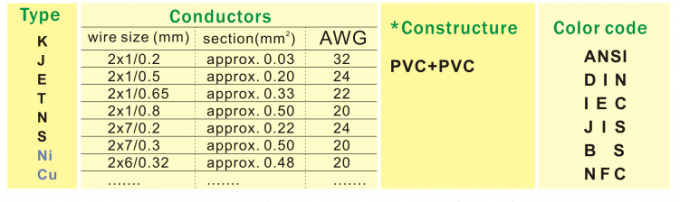

Type |
| Contractors | Color Code | ||
K | Wire size | Section (mm’) | AWG |
|
|
J | 2X1/0.2 |
| 32 | FB+FB | ANSI |
E | 2X1/0.5 |
| 24 | FB+FB | DIN |
T | 2X1/0.65 |
| 22 | FB+FB | IEC |
N | 2X1/0.8 |
| 20 | FB+FB | JIS |
S | 2X7/0.2 |
| 24 | FB+FB | BS |
| 2X7/0.3 |
| 20 | FB+FB | NFC |
|
|
| 20 | FB+FB |
|
Description:
Thermocouple cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple’s reference junction.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
Applications:
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
Thermocouple cable not only measurement errors but also can improve physical and mechanical properties of thermocouple line
Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.
Competitive Advantage
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
