Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing

Home ProductsCast Heater

Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing

China Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing supplier
Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing supplier Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing supplier Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing supplier Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing supplier

Large Image :  Industrial Finned Air Cooled Cast - In Barrel Heaters For Extrusion Processing

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton or wooden crate or as per your request
Delivery Time: 10 working days or above
Payment Terms: L/C, T/T, PAYPAL
Supply Ability: 100000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Finned Air Cooled Cast-In Barrel Heaters For Extrusion Processing Application: Industrial Heating
Voltage: 120, 240, 480 Standard , Special Voltage To Order. Wattage: Aluminum Up To 35 W/in2 Bronze Up To 50 W/in
Alloy Material Casted: Aluminum Or Bronze Heating Wire: Nickel Chrome Wire
High Light:

cast aluminum heaters

,

Cast In Heaters

,

Finned Air Cooled Cast In Barrel Heaters

Finned Air Cooled Cast-In Barrel Heaters For Extrusion Processing



Description

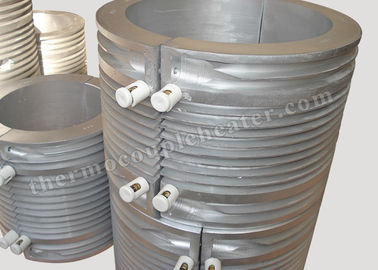

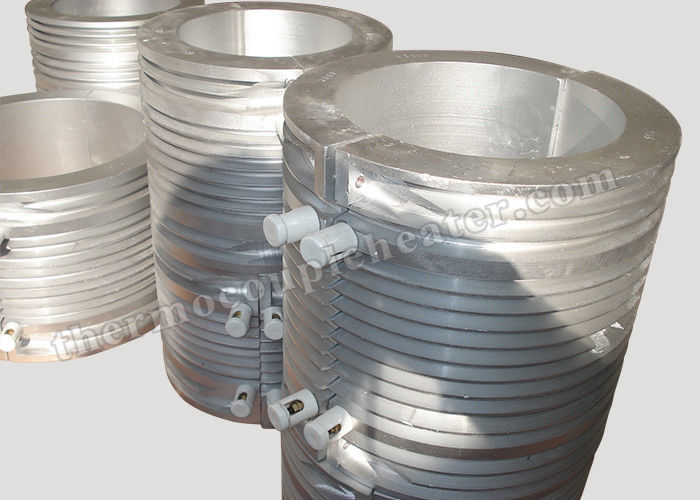

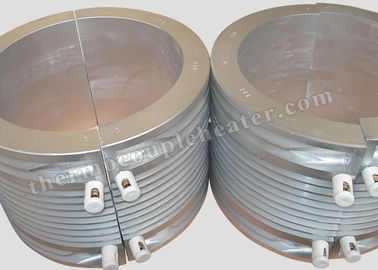

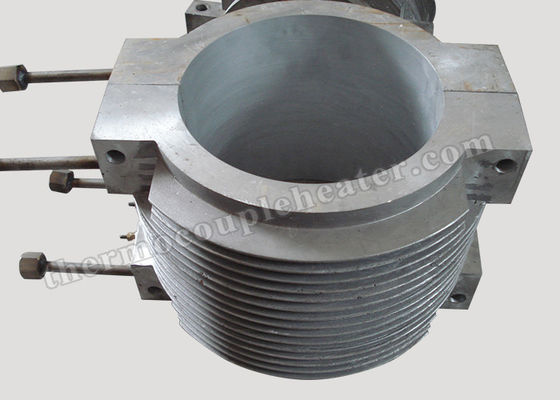

Finned air-cooled cast-in designs provide effective heating and cooling for plastics extrusion barrels. The fin pattern can be supplied as a standard height of 1” or manufactured to a low profile thickness for small extruders or applications requiring rapid cooling. This pattern is designed to allow the optimal airflow around the casting for maximum cooling rates. Typically the forced air for the cooling function is driven by a shroud and blower system that is an integral part of the extruder, however these cast- in heaters can be utilized with an individual shroud and blower assembly for increased cooling control of the individual heater zones. All cast-in barrel heater designs are available with mounting options of stainless steel locking straps or bolt-on clamping construction. Various electrical termination options are available for the air cooled cast-in heater depending on the application and environmental requirements.



Specification



Material

Aluminum, Iron, Copper

Working temperature

Aluminum 350deg.C, Iron 800deg.C ,Copper 600deg.C

Power( w/cm2)

2.5~4.5, 4.5~6.0,3.5~5

Shape

Round or Flat

Color

Silver, Red, Yellow



Features


1. Manufactured with various fin patterns for maximum airflow distribution
2. Available with low profile fins for space restricted designs
3. Mounting to barrel can be bolt-on or strap-on design
4. Engineered to fit any existing shroud assembly
5. Wide variety of heavy duty electrical termination options



Application


1. Water & oil heating appliances
2. Home & medical equipment
3. Guards or hot tubs
4. Heated rollers
5. Thermoforming equipments
6. Injection and blow moulding
