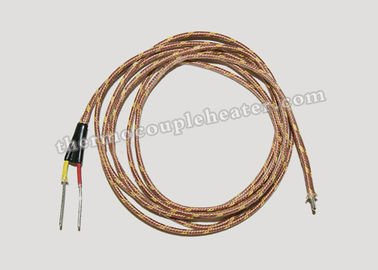

Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket

China Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket supplier
Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket supplier Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket supplier Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket supplier Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket supplier

Large Image :  Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE/UL/CSA/ISO
Model Number: FB+TF

Payment & Shipping Terms:

Minimum Order Quantity: 1000Meter
Price: USD 0.5-3.0 FOB Shanghai /Meter
Packaging Details: Export Carton Package
Delivery Time: 7-15 Working Days
Payment Terms: T/T, L/C, Western Union, PayPal
Supply Ability: 100000Meter/Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Extension Cable Max Temperature: 400℃
Wire Size: As Customer’s Request Conductor Insulator Material: Fiberglass
Jacket: Ss Structure: FB+FB+SS
High Light:

type k thermocouple extension wire

,

compensating cable for k type thermocoupl

,

Fiberglass Insulated Conductor Thermocouple Extension Cable

Thermocouple Compensating Cable with Fiberglass Insulated Conductor and Jacket (FB+TF)

Specifications:

  1. Calibration: K, J, T, E, N, S,
  2. Conductor insulation material: Fiberglass
  3. Inner shield material: SSB
  4. Jacket insulation material:
  5. Outer shield material: SSB
  6. Max environment temperature 200℃
  7. Constructure :FB+TF

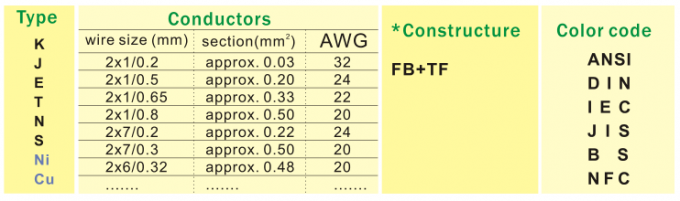

Type



Contractors

Color Code

K

Wire size

Section (mm’)

AWG





J

2X1/0.2



32

FB+FB

ANSI

E

2X1/0.5



24

FB+FB

DIN

T

2X1/0.65



22

FB+FB

IEC

N

2X1/0.8



20

FB+FB

JIS

S

2X7/0.2



24

FB+FB

BS



2X7/0.3



20

FB+FB

NFC







20

FB+FB




Description:

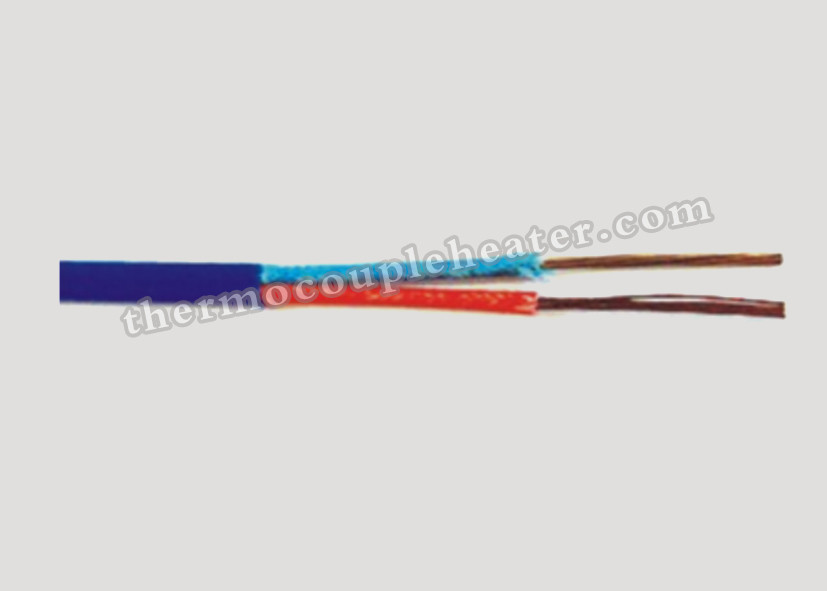

Thermocouple Compensating Cable (FB+TF), conductor are fiberglass insulated, overall jacket. Max. Environment temperature 200℃. Impregnated with silicone varnish is available upon request. Tinned brass for shielding is available

Thermocouple cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple’s reference junction.

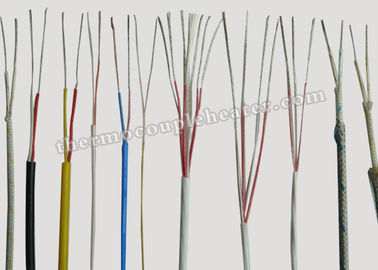

Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.



Fiberglass Insulated Conductor Thermocouple Extension Cable Type K With Jacket

Applications:

Thermocouple Cable is the extension wire which has the similar thermoelectric properties with thermocouple in a certain temperature range. The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
Thermocouple cable not only reduces the measurement errors but also can improve physical and mechanical properties of thermocouple line

Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.

Competitive Advantage:

Our measurement accuracy of thermocouple cable can reach the level of grade 1;10,000 meters without joints;The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
