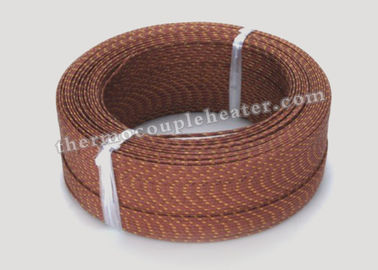

Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire

Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire

    • Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire
    • Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire
    • Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire
    • Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire
  • Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO
    Model Number: FB+FB+SS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000Meter
    Price: USD 0.5-3 FOB Shanghai /Meter
    Packaging Details: Export Carton Package
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, L/C, Western Union, PayPal
    Supply Ability: 100000Meter/Month
    Contact Now
    Detailed Product Description
    Product Name: Extension Wire Max Temperature: 400℃
    Wire Size: As Customer’s Request Conductor Insulator Material: Fiberglass
    Jacket: Stainless Steel Structure: FB+FB+SS
    Highlight:

    type k thermocouple extension wire

    ,

    extension grade thermocouple wire

    ,

    Fiberglass Insulated Thermocouple Compensating Wire

    Thermocouple Compensating Cable with Fiberglass Insulated Conductor Fiberglass Jacket and Stainless Steel Shielding (FB+FB+SS)

    Specifications:

    1 Calibration: K, J, T, E, N, S, R
    2 Conductor insulation material: Fiberglass
    3 Inner shield material: SSB
    4 Jacket insulation material: Fiberglass and stainless steel braided shielding
    5 Outer shield material: SSB



    Type



    Contractors

    Color Code

    K

    Wire size

    Section (mm’)

    AWG





    J

    2X1/0.2



    32

    FB+FB

    ANSI

    E

    2X1/0.5



    24

    FB+FB

    DIN

    T

    2X1/0.65



    22

    FB+FB

    IEC

    N

    2X1/0.8



    20

    FB+FB

    JIS

    S

    2X7/0.2



    24

    FB+FB

    BS



    2X7/0.3



    20

    FB+FB

    NFC







    20

    FB+FB




    Description:

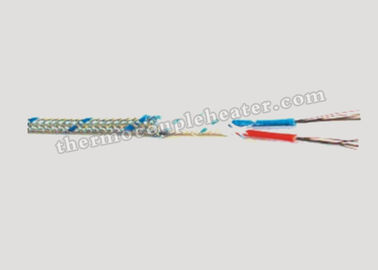

    Thermocouple Compensating Cable (FB+FB+SS), conductor are fiberglass insulated, overall fiberglass jacket, and stainless steel braided shielding. Max. Environment temperature 400 ℃. Impregnated with silicone varnish is available upon request. Tinned brass for shielding is available.

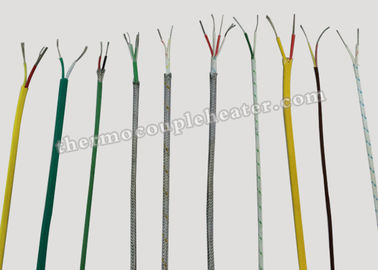

    Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.

    Fiberglass Insulated Stainless Steel FB+FB+SS Thermocouple Compensating Wire
    Applications:

    Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.

    The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.

    Thermocouple cable not only measurement errors but also can improve physical and mechanical properties of thermocouple line

    Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.

    Competitive Advantage

    1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
    2. 10,000 meters without joints
    3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
