| Product Name: | Thermocouple Compensating Cable | Max Temperature: | 400℃ |
|---|---|---|---|
| Type: | K/J/E/T/N/S | Conductor Insulator Material: | Fiberglass |
| Jacket: | Stainless Steel | Structure: | FB+SS |
| High Light: | type k thermocouple extension wire,extension grade thermocouple wire,Stainless Steel Jacket Thermocouple Compensating Cable |
||

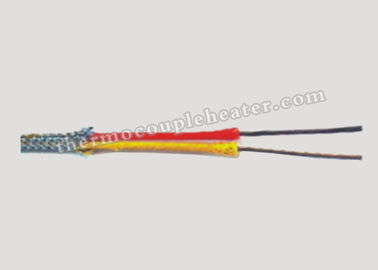

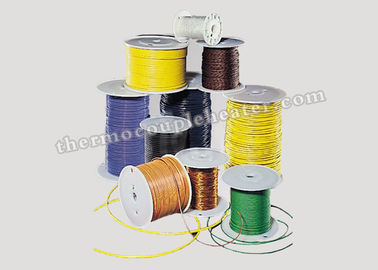

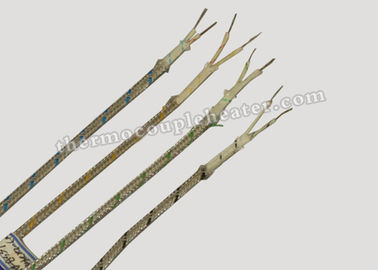

Thermocouple Compensating Cable with Fiberglass Insulated Conductor and Stainless Steel Jacket (FB+SS)
Specifications:
1. Calibration: K, J, T, E, N, S, R
2. Conductor insulation material: Fiberglass
3. Inner shield material: SSB
4. Jacket insulation material: Fiberglass
5. Outer shield material: SSB
|
Type |
|
Contractors |
Color Code |
||
|
K |
Wire size |
Section (mm’) |
AWG |
|
|
|
J |
2X1/0.2 |
|
32 |
FB+FB |
ANSI |
|
E |
2X1/0.5 |
|
24 |
FB+FB |
DIN |
|
T |
2X1/0.65 |
|
22 |
FB+FB |
IEC |
|
N |
2X1/0.8 |
|
20 |
FB+FB |
JIS |
|
S |
2X7/0.2 |
|
24 |
FB+FB |
BS |
|
|
2X7/0.3 |
|
20 |
FB+FB |
NFC |
|
|
|
|
20 |
FB+FB |
|
FB-SS Physical Properties:
|
Characteristics |
Insulation |
Jacket |
|
Abrasion Resistance |
Good |
Good |
|
Cut Through Resistance |
Very good |
Excellent |
|
Moisture Resistance |
Good |
Good |
|
Solder Iron Resistance |
Excellent |
Excellent |
|
Service Temperature |
480℃continuous 537℃single |
480℃continuous 537℃single |
|
Flame Test |
Non-flammable |
Non-flammable |
Description:
Thermocouple cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple’s reference junction.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
Applications:
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range. The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire. Thermocouple cable not only reduces measurement errors but also can improve physical and mechanical properties of thermocouple line
Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.
Competitive Advantage
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
