High quality platinum MI thermocouple cable Mineral Insulated Type R in sheath material of inconel 600

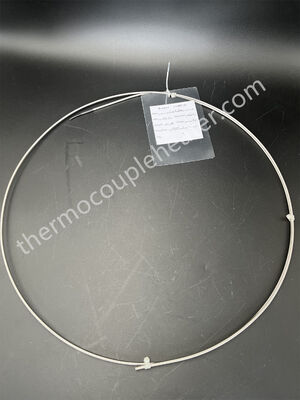

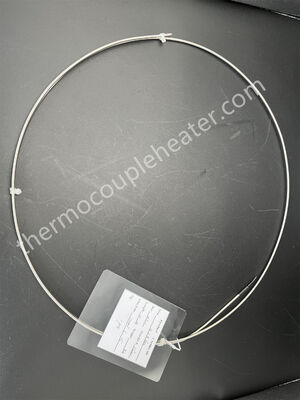

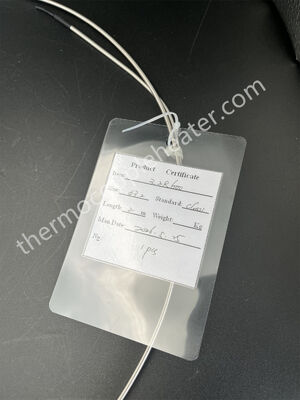

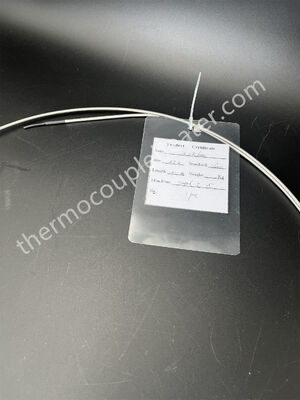

Large Image : High quality platinum MI thermocouple cable Mineral Insulated Type R in sheath material of inconel 600

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Style:	PT100, PT1000, PT500, K, J	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Probe Length:	30-1000mm
Usage:	Temperature Sensor	Temperature:	0-800C
Types Of Terminal Box:	Anti-spray/water-proof

High quality platinum MI thermocouple cable Mineral Insulated Type R in sheath material of inconel 600

Description:

There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.

Type R thermocouples are especially valued for their long service life and stability, performing exceptionally well in oxidizing or inert atmospheres. However, similar to type S thermocouples, they may experience drift when used over extended periods at high temperatures.

Due to these characteristics, Type R thermocouples find widespread use in industries that require precise temperature control, such as glass, ceramics, and metallurgy. They are also frequently used in laboratory settings and for calibrating other thermocouples, where their accuracy and stability are essential.

Code	+Positive leg	-Negative leg
N	Ni-Cr-Si(NP)	Ni-Si-Mg(NN)
K	Ni-Cr-Si(KP)	Ni-Al(KN)
E	Ni-Cr(EP)	Cu-Ni<constantan>(EN)
J	Iron(JP)	Cu-Ni<constantan>(JN)
T	Copper(TP)	Cu-Ni<constantan>(TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Features

Mineral Insulated Thermocouple Cable

Temperature range:-200-1300

MI cable: OD 0.25 - 8.00
Sheath material: Inconel 600, SS316, SS304, SS321.
Mini coil length: Per client's request
Accuracy: Class I, II
Wire: Simplex & duplex

High quality platinum MI thermocouple cable Mineral Insulated Type R in sheath material of inconel 600 0

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,the value should be 50M/500VDC at least.
