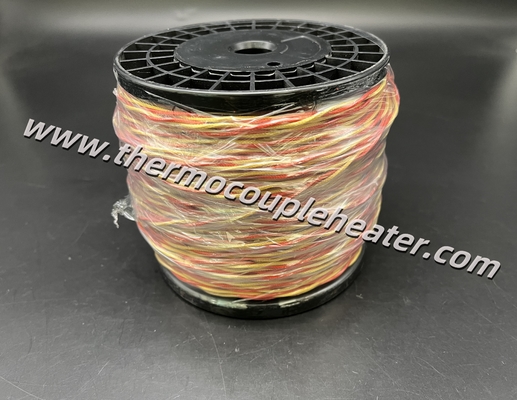

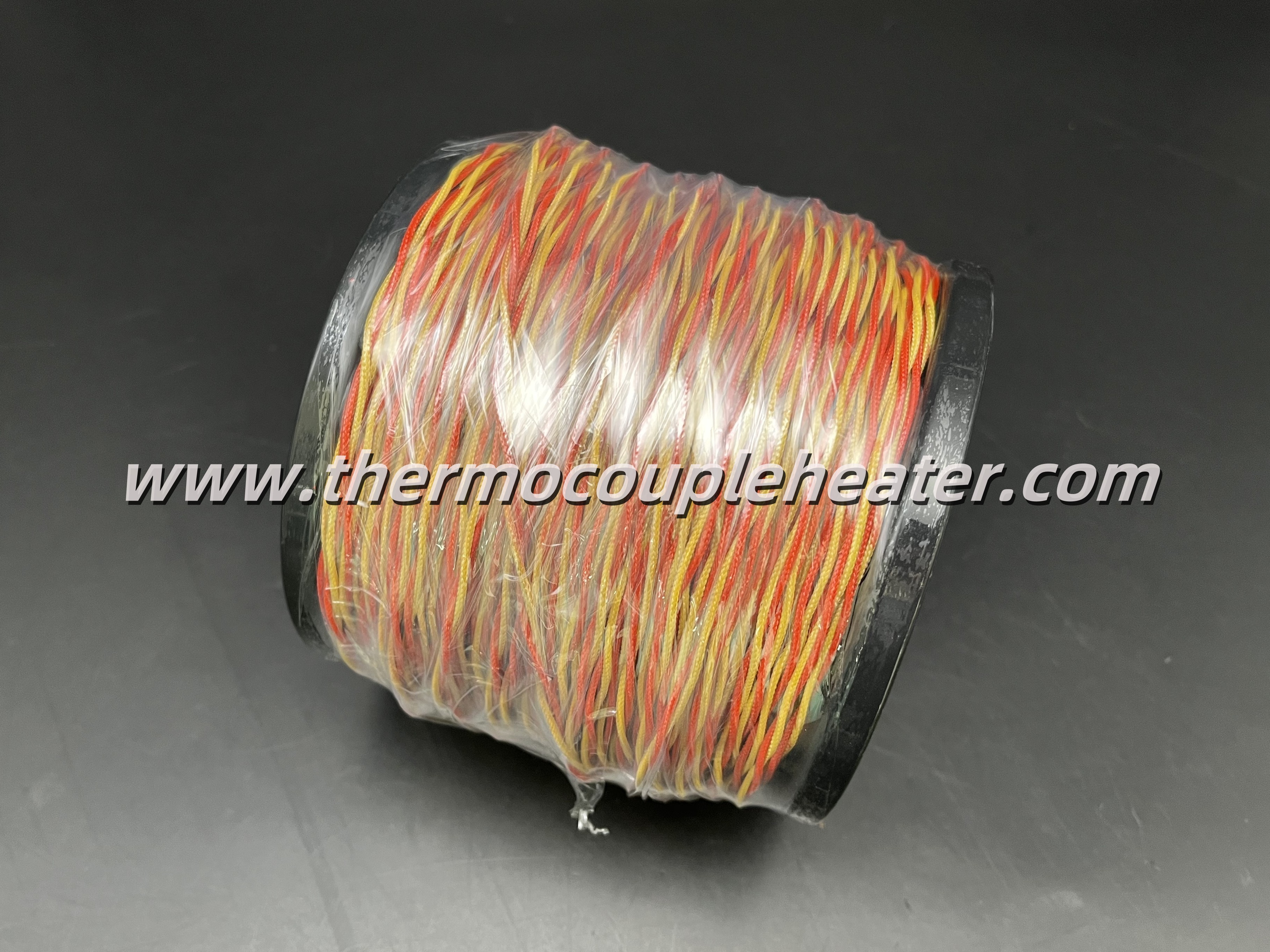

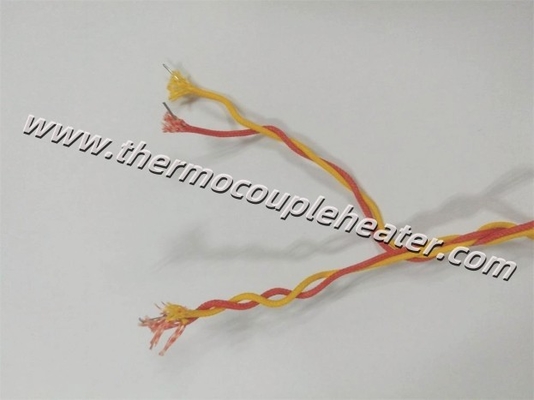

Thermocouple Cable Type K Twisted Pair Red And Yellow 0.71mm

Large Image : Thermocouple Cable Type K Twisted Pair Red And Yellow 0.71mm

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	500 meters
Packaging Details:	Standard exporting package
Delivery Time:	5-15 days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	1,000,000 meters per month

Contact Now

Detailed Product Description

Type:	K	Insulation Material:	Fiberglass
Conductor:	0.71mm	Temperature Range:	Up To 700℃
Color:	+yellow / -red	Application:	Connecting Thermocouple And Instrument Machine
Highlight:	Twisted Pair Thermocouple Cable , Red And Yellow Thermocouple Cable , 0.71mm Thermocouple Cable

Thermocouple Cable Type K Twisted Pair Red And Yellow 0.71mm

1. Brief Introduction

Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple's reference junction.

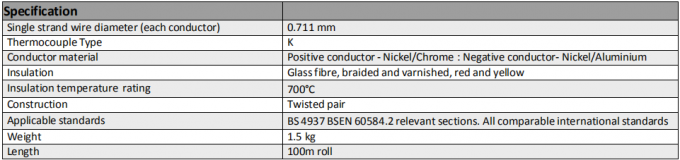

2. Specifications

Thermocouple Cable Type K Twisted Pair Red And Yellow 0.71mm 0

3. Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Conductor Size

- Constructure

- Color Code

- Order Quantity

Thermocouple Cable Type K Twisted Pair Red And Yellow 0.71mm 1

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
