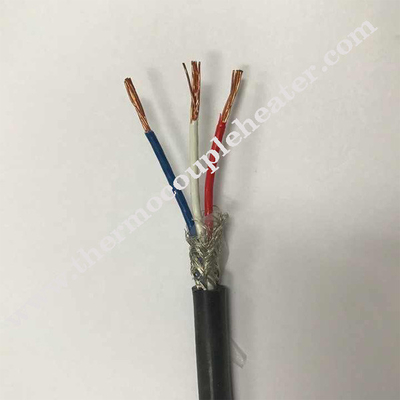

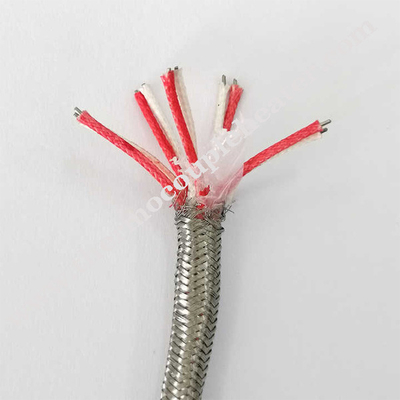

Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
Description:
1.Style:Compensation Wire
2.Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Products Description:
Thermocouple Variety and Index |
||
Variety |
Type |
Measurement Range(°C) |
NiCr-NiSi |
K |
-200-1300 |
NiCr-CuNi |
E |
-200-900 |
Fe-CuNi |
J |
-40-750 |
Cu-CuNi |
T |
-200-350 |
NiCrSi-NiSi |
N |
-200-1300 |
NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
-270-0 |
Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire:
| Thermocouple Type | ANSI Color Code | Initial Calibration Tolerances | ||||
| Wire Alloys | Calibration | +/- Conductor |
Jacket | Temperature Range | Standard Limits |
Special Limits |
| Iron(+) vs. Constantan(-) |
J | White/Red | Brown | 0°C to +285°C 285°C to +750°C |
±2.2°C ± .75% |
±1.1°C ± .4% |
| CHROMEL(+) vs. ALUMEL(-) |
K | Yellow/Red | Brown | -200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C |
± 2% ±2.2°C ±2.2°C ± .75% |
±1.1°C ± .4% |
| Copper(+) vs. Constantan(-) |
T | Blue/Red | Brown | -200°C to -65°C -65°C to +130°C 130°C to +350°C |
± 1.5% ±1°C ± .75% |
± .8% ± .5°C ± .4% |
| CHROMEL(+) vs. Constantan(-) |
E | Purple/Red | Brown | -200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C |
± 1% ±1.7°C ±1.7°C ± .5% |
±1°C ±1°C ± .4% ± .4% |
