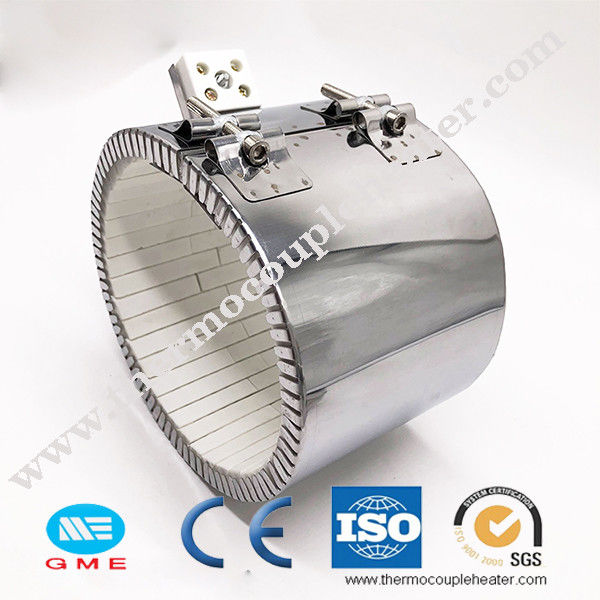

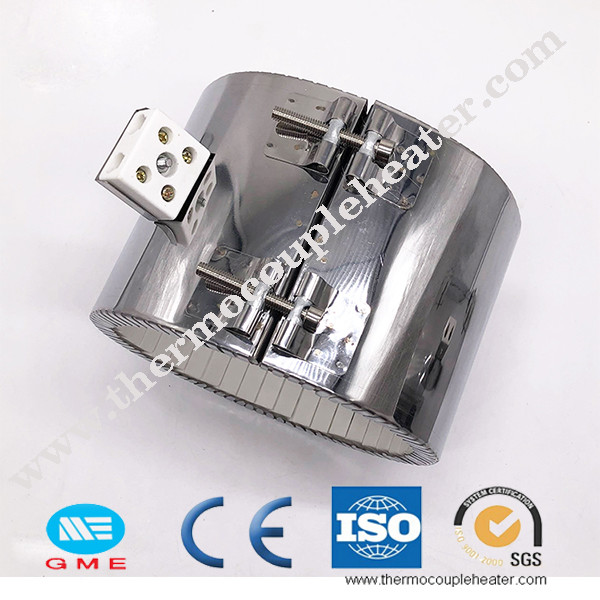

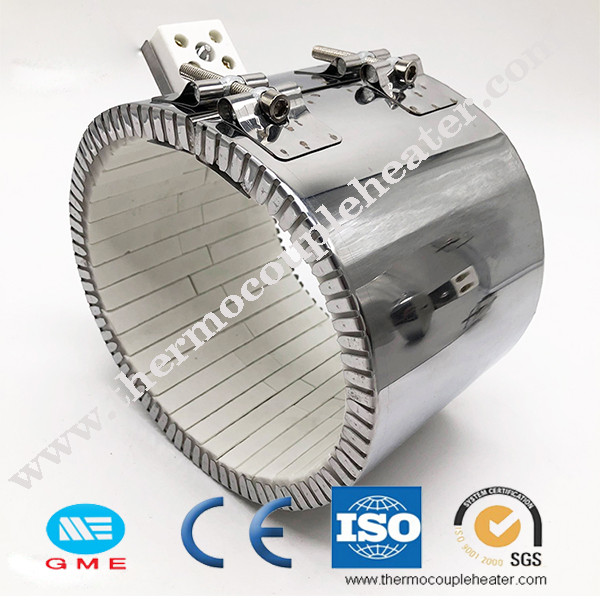

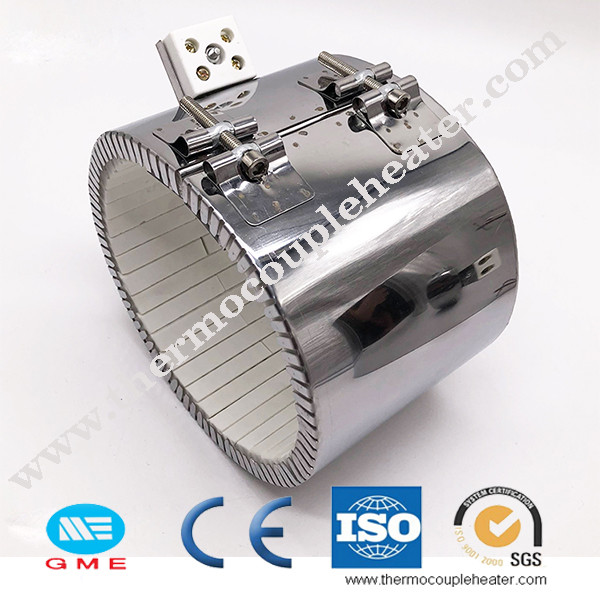

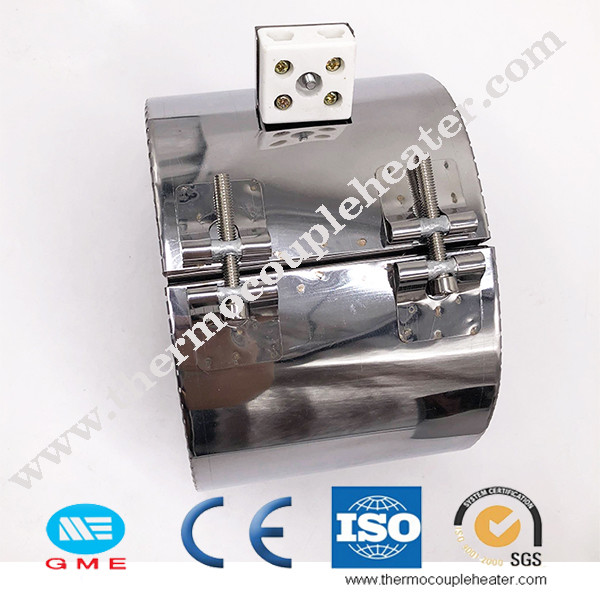

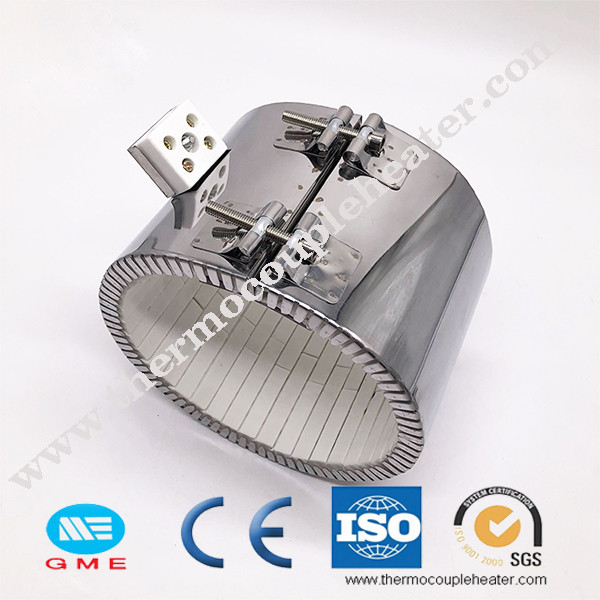

Nickel Sheath Ceramic Band Heaters ID 25mm For Electric Extruder

Electric Extruder Ceramic Heater Band with Terminal Connectors for plastification cylinders

Description:

Electric Extruder Ceramic Heater Band with Terminal Connectors is designed and manufactured out of 40 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 400°C along with Energy Saving.

Specification:

Ceramic band heater, mainly used for extrusion,casting and down-stroke machines. The operating temperature can reach up to 600 degree C. The maximum surface loading rate is 8 w/ cm2. Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving(energy consumption is reduced by 30%), high resistance of high insulation rate. It is one of the most suitable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.

1. Use condition:environment temperature -20~+60 degree C

2. Leakage current:<0.5MA

3. Insulation resistance:>=5M

4. Ground resistance:<0.1

5. Voltage resistance:no electric breakdown for 1 minute under 1500v

6. Temperature endurance:500-800 degree C

7. Power deviation:+5%-10%

Application:
