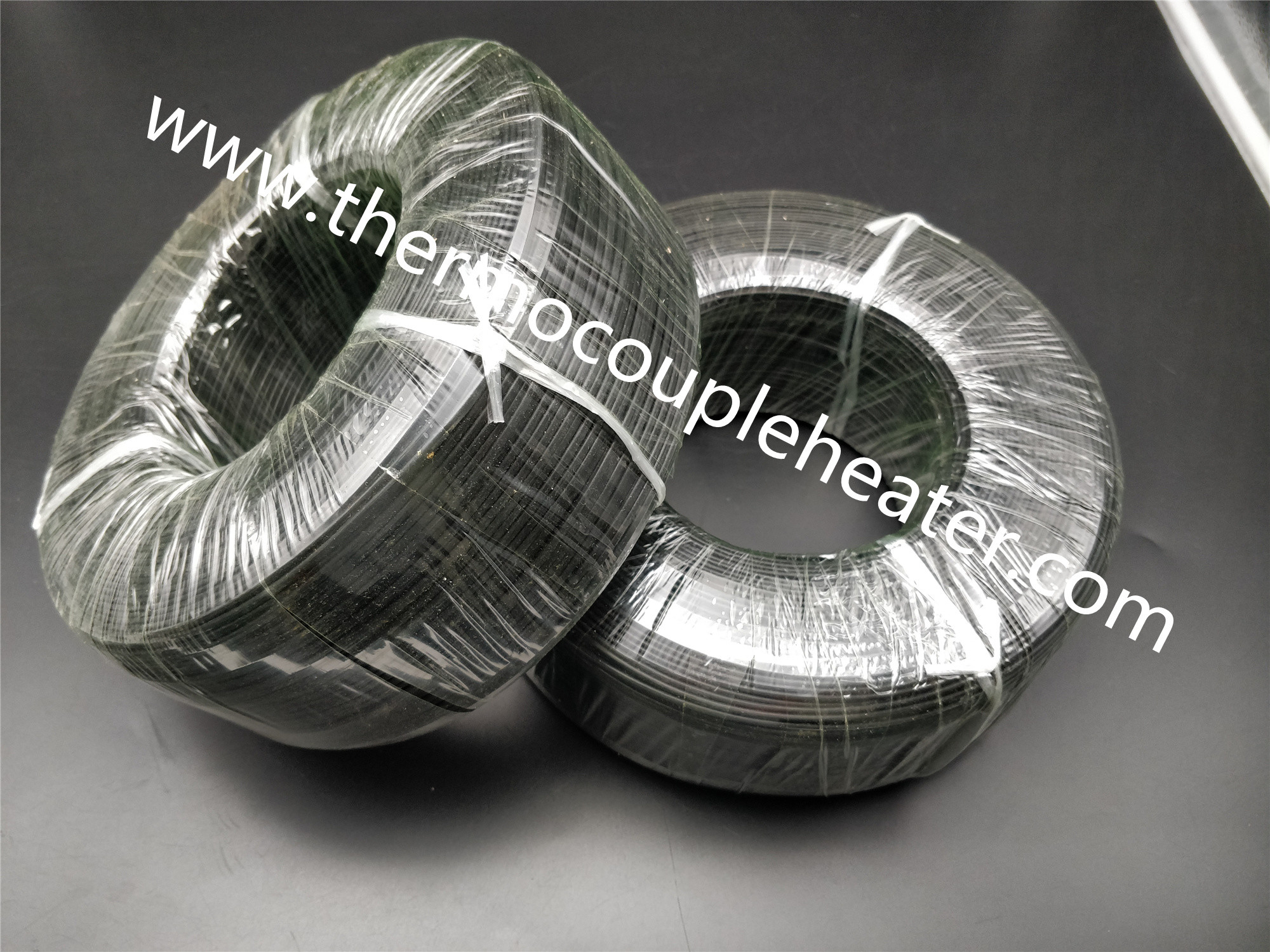

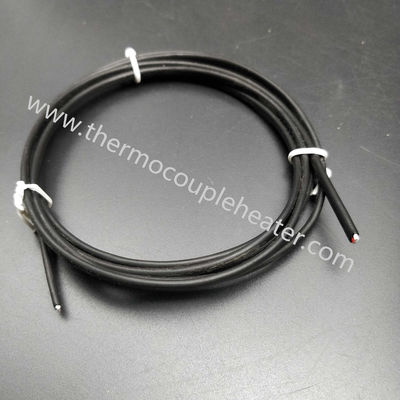

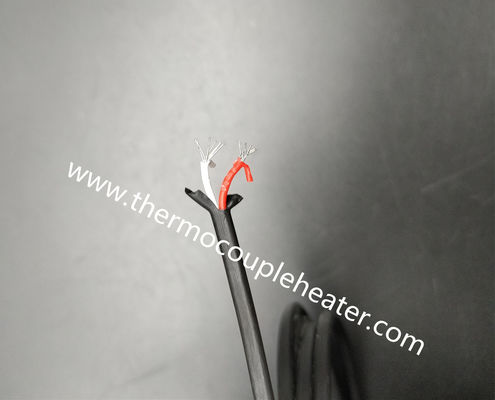

Insulation Type J 24AWG Thermocouple Extension Wire ANSI Color

Thermocouple Cable Extension Wire Type J 24AWG Insulation ANSI Color​

1. Brief Introduction

Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple's reference junction.

2. Insulation Material

Commonly there are four types of insulation material for extension cable:

- Fiberglass

-

- PVC

- Silicone.

Stainless steel braided and tinned brass braided are also commonly used in the cable.

3. Color Style

Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.

4. Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Conductor Size

- Constructure

- Color Code

- Order Quantity
