Insulated 3 Wires RTD PT100 Thermocouple Extension Wire

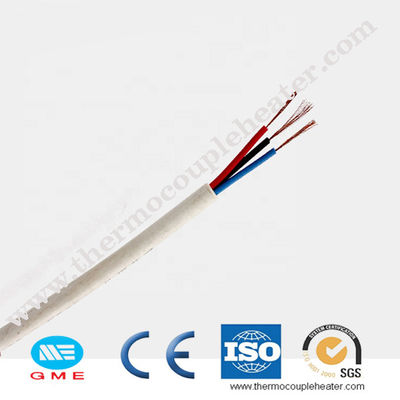

Large Image : Insulated 3 Wires RTD PT100 Thermocouple Extension Wire

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	type K, Type J

Payment & Shipping Terms:

Minimum Order Quantity:	500meters
Price:	USD$0.5-1.5/meter
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000meters

Contact Now

Detailed Product Description

Type:	Insulated	Conductor Material:	Ni Si Cr
Insulation Material:	Silicone, Fiberglass PFA, FEP, PTFE, PVC	Sheath Material:	Fluoroplastic
Treatment:	Hydrogen Annealing	Size:	As Customized Size
Highlight:	PT100 Thermocouple Extension Wire , RTD Thermocouple Extension Wire , 3 Wires Thermocouple Compensating Cable

high quality 3 Wires RTD PT100 Thermocouples Sensor Extension Wire

Description:

1) The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature
measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the pyrometers for indication and control.

2) The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for
sensing the temperature.

Products Description:

* Type: pt 100, K, E, J, T, N, etc.

* Style: solid or stranded, parallel or twisted

* Conductor material:

Variety	Type
NiCr-NiSi	K
NiCr-CuNi	E
Fe-CuNi	J
Cu-CuNi	T
NiCrSi-NiSi	N
NiCr-AuFe0.07	NiCr-AuFe0.07

* Insulating and sheath material:1. insulator Material

Silicone, fiberglass, , PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
