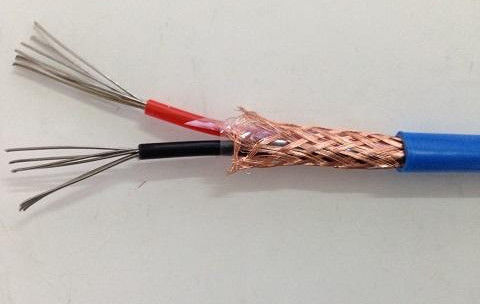

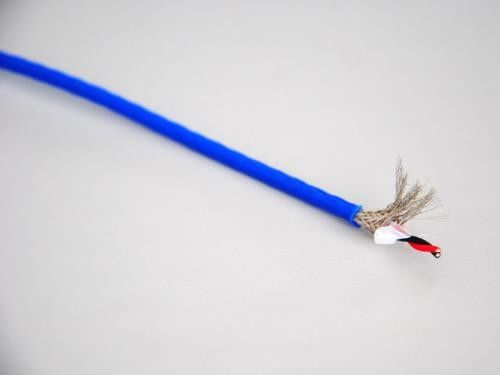

GSWB Armor Thermocouple Compensating Cable Silicon / FEP Sheath For Instrumentation

Product Details:

Place of Origin:	Wuhan, China
Certification:	CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1000m
Packaging Details:	packing for export
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000m/month

Contact Now

All Products

Coil Heaters (338)

Thermocouple RTD (304)

Mineral Insulated Thermocouple Cable (34)

Thermocouple Compensating Cable (66)

Cartridge Heaters (148)

Cast Heater (36)

Tubular Heater (91)

High Temperature Cable (30)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (167)

Mica Insulated Band Heaters (30)

Ceramic Heaters (4)

Electric Heater Components (35)

Heater Making Machine (14)

ANSI Color Insulated Thermocouple Extension Cable Type K

Detailed Product Description

Type:	Extension Cord	Type 2:	Thermocouple Cable
Insulation:	PVC/PE/ Silicon/ FEP	Armor:	GSWB
Application:	Instrumentation	Sheath:	PVC/PE/ Silicon/ FEP
High Light:	type k thermocouple extension wire , extension grade thermocouple wire

Thermocouple cable, extension wire, compensation cable

Thermocouple Compensating Cables

Thermocouple Extention/Compensating Used to extend thermocouple circuits from the sensor to reference unit, Generally manufactured with conductor sizes 16, 18 & 20 AWG and conforming to IS: 8784, BS: 4937, IEC-584, ANSI: MC: 96.1, DIN, JIS

Conductor: Solid/stranded
Type: KX, VX, TX, JX, EX, SX/RX
Insulation: PVC –HR; PE, LSZH
Shielding: Individual & overall or overall screen only by Al-mylar tape/copper tape/copper wire braid
Inner sheath: PVC –HR/FR/FRLS; PE, LSZH
Armour (for armoured cables): Galvanized steel round wire/strip
Outer sheath: PVC –HR/FR/FRLS; PE, LSZH

Thermocouple Extention/Compensating Cables. The conductors used for these cables are required to have similar thermoelectric (emf) properties as that to the thermocouple used for sensing the temperature. The cables manufactured as per IS:8784, ANSI-96.1, B.S. And customers specification.

Range of Thermocouple Extention/Compensating Cables

Extention Cables :	CONDUCTOR MATERIAL
	Positive	Negative
Kx(NicrlNial)	Chromel	Alumel
Jx (FeICuNi)	Iron	constantan
Ex (Nicr/CuNi)	Chromel	constantan
Tx (Cu/CuNi)	Copper	constantan
