K Type Thermocouple Extension Wire Low Voltage Copper / Tinned Copper Conductor Material

Large Image : K Type Thermocouple Extension Wire Low Voltage Copper / Tinned Copper Conductor Material

Product Details:

Place of Origin:	Wuhan, China
Certification:	ISO9001,CCC,CE,IEC,BV,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	1000m
Price:	Negotiable
Packaging Details:	packing for export
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000m/month

Contact Now

Detailed Product Description

Insulation Material:	Silicone Rubber	Conductor Material:	Copper Or Tinned Copper
Type:	Low Voltage	Jacket:	Silicone Rubber
Application:	Industrial	Certificate:	ISO9001,CCC,CE,IEC,BV,SGS
Highlight:	type k thermocouple extension wire , compensating cable for k type thermocoupl

High Quality K Type Thermocouple Wire Compensation Extended Cable

Product Description

Type K(CHROMEL vs ALUMEL) is used in oxidizing, insert or dry reducing atmospheres.Exposure to Vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres.Reliable and accurate at high temperatures.

High Quality K Type Thermocouple Wire Compensation Extended Cable

thermocouple compensation cable
Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50 to +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
material of insulation:	fiberglass, telfon, PTFE, PVC, silicone,so on
material of jacket:	fiberglass, telfon, PTFE, PVC, silicone,so on
shielding material:	Stainless Steel Braid and Tinned Copper wire braid

High Quality K Type Thermocouple Wire Compensation Extended Cable

Thermocouple Extension Wire Compensating Cable
Type of Compensating Conductor	Equipped Thermocouple	Thermocouple Index	Compensating Conductor Allong-wire		Insulation Layer Coloration
			Positive	Negative	Positive	Negative
SC	PtRh10-Platinum thermocouple10	S	SPC Cu	SNC	Red	Green
				Cu Ni
RC	PtRh13-Platinum thermocouple13	R	RPC Cu	RNC Cu Ni	Red	Green
KCA/KCB/KX	Ni Cr- Nisi-loy Thermocouple	K	KPCA Fe/	KNCA Cu Ni/	Red	Blue/
			KPCB Cu/	KNCB Cu Ni/		Blue/
			KPX Ni Cr	KNX Ni Si		Black
NC/NX	Ni Cr- Nisi-loy Thermocouple	N	NPC Fe	NNC Cu Ni	Red	Grey
			NPX	NNX Ni Si		Grey
			Ni Cr Si
EX	Ni Cr- Copper-nickel Thermocouple	E	EPX Ni Cr	ENX Cu Ni	Red	Brown
JX	Fe- Copper-nickel Thermocouple	J	JPX Fe	JNX Cu Ni	Red	Purple
TX	Cu- Copper-nickel	T	TPX Cu	TNX Cu Ni	Red	White
	Thermocouple

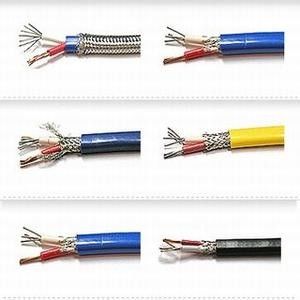

K Type Thermocouple Extension Wire Low Voltage Copper / Tinned Copper Conductor Material 0

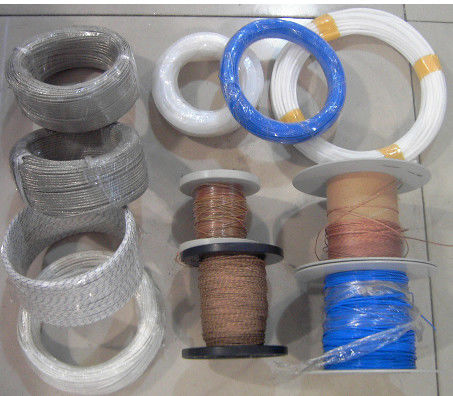

K Type Thermocouple Extension Wire Low Voltage Copper / Tinned Copper Conductor Material 1
