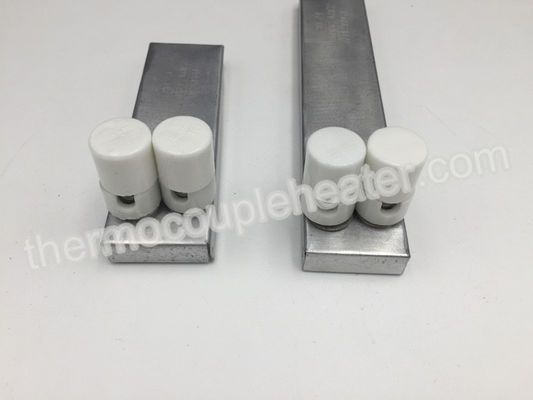

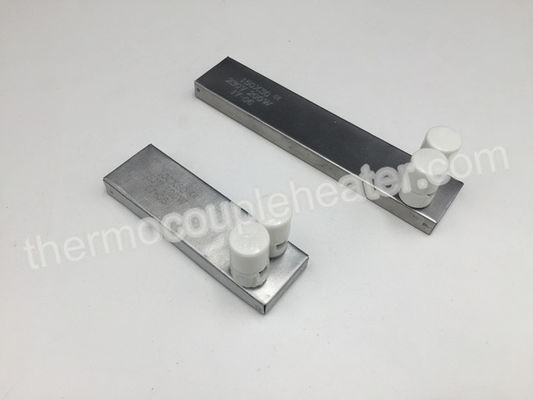

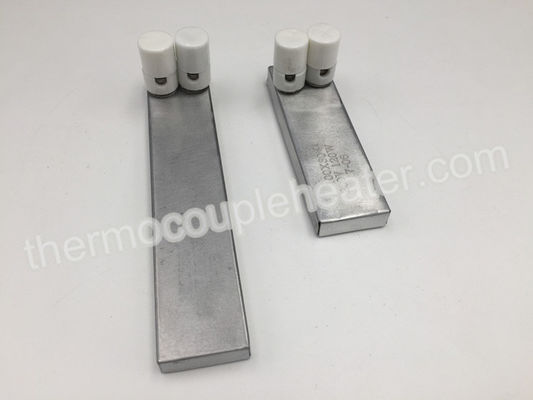

Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover

China Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover supplier
Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover supplier Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover supplier Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover supplier Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover supplier

Large Image :  Ceramic strip Channel Cast Heater With Ceramic Terminal Protecion Cover

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD
Packaging Details: carton , wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Ceramic Strip Channel Heater With Ceramic Terminal Protecion Cover Insulation Material: Ceramic
Sheath Material: Stainless Steel Power: 120W~200W
Voltage: 230V
High Light:

Cast In Heaters

,

electric immersion heater

Ceramic strip Channel Heater With Ceramic Terminal Protecion Cover





Ceramic Channel Strip Heaters introduction



Ceramic Channel Strip Heaters are constructed of specially selected high quality materials, beginning with the high temperature alloy resistance wire uniformly coiled and spaced over the width of the heated length of the strip heater. This controlled coil process and replacement assures uniform heat distribution over the entire active surface of the heater. Special care is taken to secure the stud-type terminal to the high-temperature alloy resistance contact.

The coiled resistance wire is embedded in a special refractory Material that possesses excellent heat transfer characteristics and superior insulation properties. The entire heater assembly is encased in either stainless or chrome steel sheath and is compressed under high pressure. The completed assembly is heated under controlled conditions to bake and semi vitrify the refractory for a rigid, vibration resistant, heavy-duty heating unit.



Ceramic Channel Strip Heaters can be finned to improve heat transfer. The fins are specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air.





Ceramic Channel Strip Heaters construction



1. Seamless stainless steel sheath and fins

2. Post terminals

3. Ceramic element support

4. Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.





 Ceramic Channel Strip Heaters Features :



1.Watt density: Max 35 w/in²
2.Standard Strip width: 40mm
3.Standard Finn dimension: 65X35mm
4.Maximum Allowable Sheath Temperature:
5.Rust resistant Mild Steel 350°C
6.Stainless Steel 550°C





Applications of Ceramic Channel Strip Heaters:


Dies and mold heating
Autoclaves
Thermoforming
Resistive Load Banks
Food warming
Freeze and moisture protection
Tank and platen heating
Packaging
Ovens
