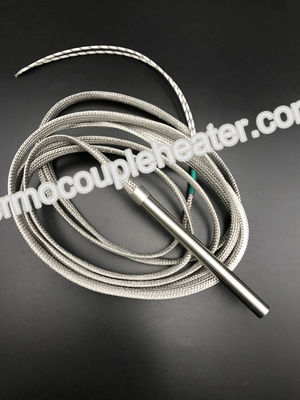

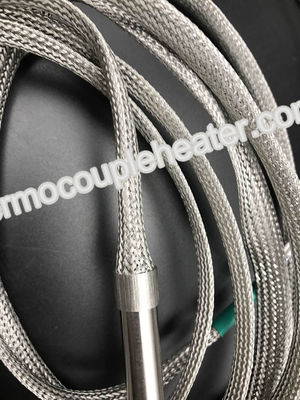

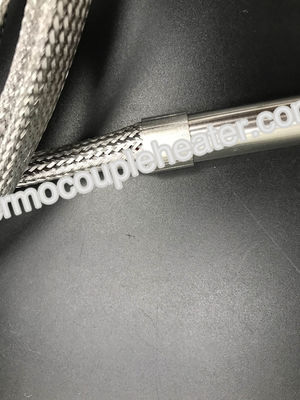

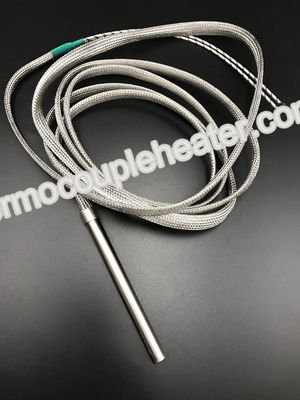

Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads

China Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads supplier
Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads supplier Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads supplier Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads supplier Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads supplier

Large Image :  Stainless Steel 316 Sheath Electric Cartridge Heaters With Externally Connected Leads

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD 1-100 FOB Shanghai/pc
Packaging Details: Exported Case Packing
Delivery Time: 7-15Wroking Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs/Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Stainless Steel 316 Sheath Cartridge Heater With Externally Connected Leads Thermocouple: No
Tube Material: High Quality 316L Resistance Wire: Ni80Cr20
Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
Wattage: 0.5-15KW
High Light:

electric cartridge heaters

,

cartridge heater with thermocouple

Stainless Steel 316 Sheath Cartridge Heater With Externally Connected Leads





Description:



Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. And it is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….





Technical Details



1. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide

2. Heating element: high durance and high temperature NiCr2080 heating elements from Germany

3. Max working temperature: 400℃

4. Sheath material : Stainless Steel 316

5. High voltage stability test:

6. Less than 0.5mA leak under 1000V for 30 seconds

7. OD range: 3mm-32mm

8. The range of the Total Length: 25mm----2500mm

9. Maximum power density: 40w/cm²

10. Unheated zone: 10mm at lead end and about 5mm at bottom

11. Lead options:

A: Solid Nickel Pin: wire 300℃ or 500℃

B: Swaged in wire: 500℃ wire coming from inside





Feature:



Available with in built Thermocouple
Standard Sizes Available
Superior Life Expectancy
Highly Non-corrosive

Specially selected High Purity
Magnesium Oxide





Applications:



Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in below area,



Medical & Laboratory Apparatus
Shoe Making Industry
Die and platents

Hot Runner Bushings
Marking & Sealing Machinery
Packaging Industry
