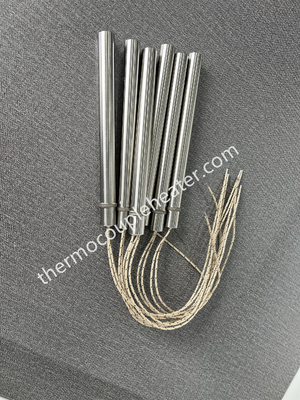

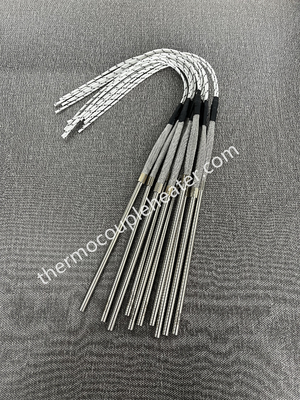

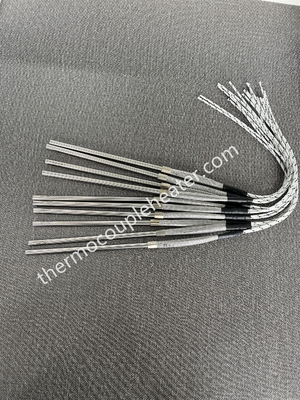

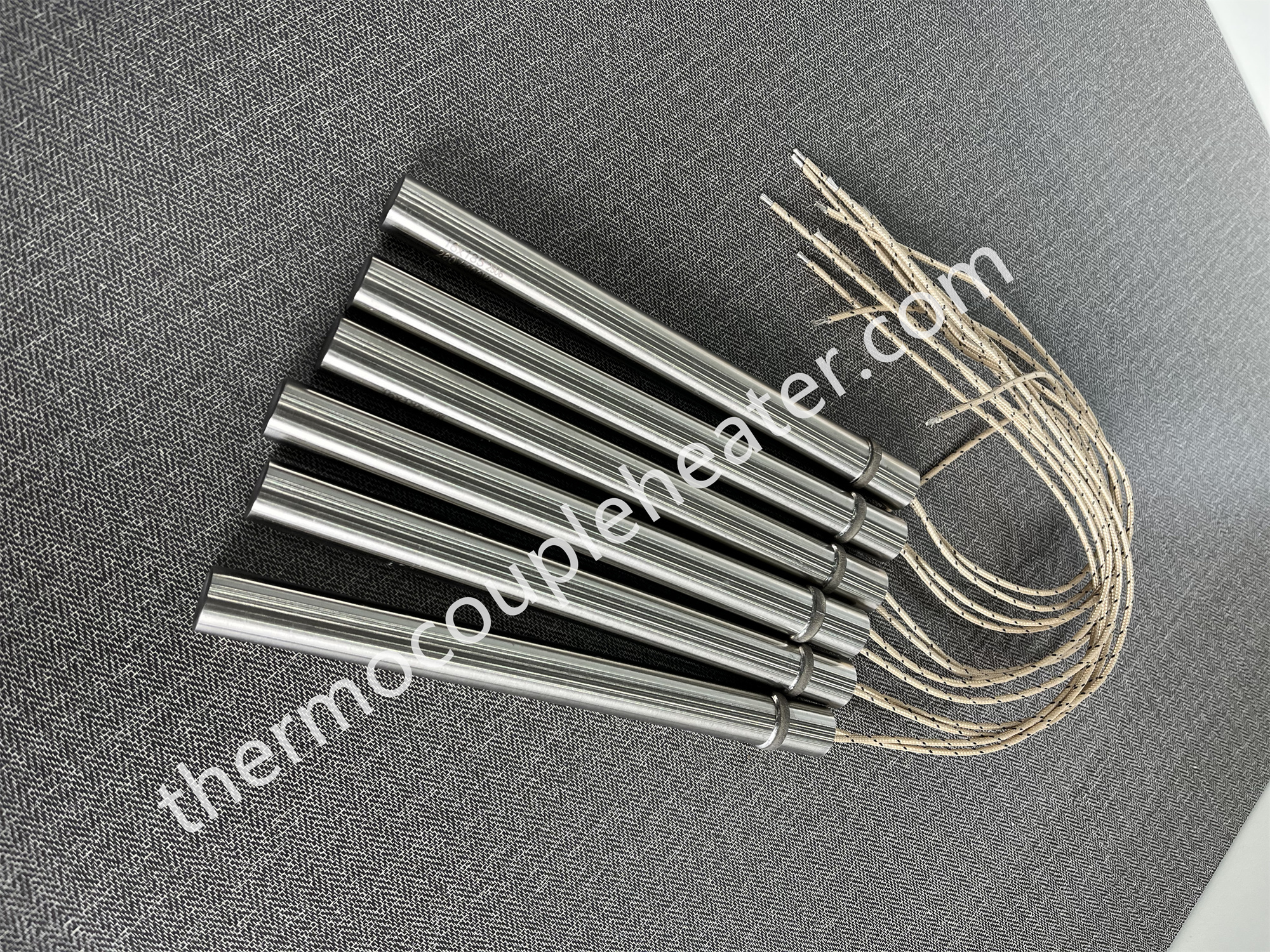

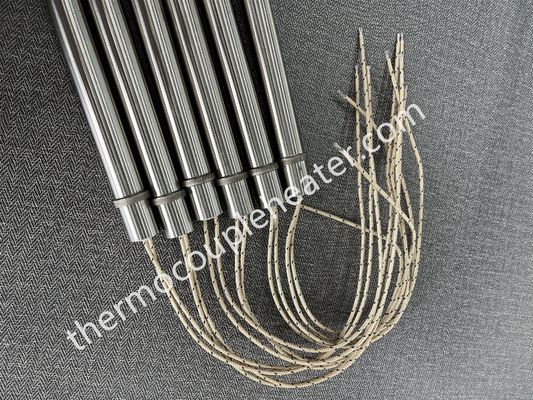

Cartridge Heater In Electric Cartridge Heater With Flange Plate And Metal Mesh

Large Image : Cartridge Heater In Electric Cartridge Heater With Flange Plate And Metal Mesh

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Boxes or Wooden Cartons
Delivery Time:	7-15 work days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Lead Wire:	Silicon, Glassfiber	Shealth Material:	SS304 ,SS321 ,SS316
Color:	Biack And White	Wattage Tolerance:	+5%, -10%
Application:	Oil, Water Or Other Liquid Etc	Power Source:	Electric
Voltage:	12-480v	Dimension(LWH):	Customizable
Type:	Air Heater, Cartidge Heaters	Insulation:	Mgo Powder
Highlight:	Cartridge Heater With Metal Mesh , Flange plate Cartridge Heater , Cartridge Heater With flange plate

Cartridge Heater in Electric Cartridge Heater With flange plate and metal mesh

Description:

Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.

Specification:

Item name	High power water heating element cartridge immersion heater
Resistance heating wire	Ni-Cr or FeCr
Sheath	stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
Insulation	High-purity Mgo
Maximum temperature	800 degree Celsius
Leakage current	750℃,＜0.3mA
Withstand voltage	＞2KV, 1mins
AC on-off test	2000 times
Voltages available	380V,240V, 220V,110V,36V,24V or 12V
Wattage Tolerance	+5%, -10%
Thermocouple	K type or J type
Lead wire	300mm length; Different type of wire (PTFE/silicone high temperature frberglass) is available

Internal wiring port section of the heating tube does not adopt the terminal connection mode,

Making it havhigh temperature resistance and strong mechanical properties.

The port part of the heating tube adopts terminal connection mode Is resistant to

high temperature and works in the heating medium which can not conduct wiring at both ends.

1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;

Date sheets

Resistance heating wire	NiCr 80/20 wire
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Length tolerance	±1 mm
Diameter tolerance	-0.02mm
Standard Cold Zone	5-10mm
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Thermocouple Location	type J / K / Ground wire

Cartridge Heater In Electric Cartridge Heater With Flange Plate And Metal Mesh 0

Application:

* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
