Fiberglass Thermocouple Extension Cables K J Type High Accuracy

Fiberglass Thermocouple Extension Cables K J Type High Accuracy

    • Fiberglass  Thermocouple Extension Cables K J Type High Accuracy
    • Fiberglass  Thermocouple Extension Cables K J Type High Accuracy
    • Fiberglass  Thermocouple Extension Cables K J Type High Accuracy
  • Fiberglass  Thermocouple Extension Cables K J Type High Accuracy

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: J, K

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 M
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 10-20 working days after received your payment
    Payment Terms: T/T, Western Union, Paypel
    Supply Ability: 100000 m per month
    Contact Now
    Detailed Product Description
    Jacket: PVC, Fiberglass Calibration: J, K
    Size: 16 BWG Insulation Material: PVC
    Package: In Roll Or Spool Color Code: ANSI, DIN, LEC, ETC
    Color: Red, Black, Blue, Yellow Conductor: PVC
    High Light:

    type k thermocouple extension wire

    ,

    extension grade thermocouple wire





    Fiberglass Thermocouple Extension Cables K J Type High Accuracy





    1. Introduction



    Thermocouple extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.



    Practical for use in connecting between a thermocouple sensor and readout, extension wire comes in as large a variety as our thermocouple wire.



    2. Application



    Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.

    Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.

    Customers from different areas possibly require different color style for the cable, all color standard are available upon request.



    Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.

    The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.



    3. Competitive Advantage



    • Our measurement accuracy of thermocouple cable can reach Class 1
    • 10,000 meters without joints
    • The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
    Characteristics Insulation Jacket
    Abrasion Resistance Good Good
    Cut Through Resistance Very good Excellent
    Moisture Resistance Good Good
    Solder Iron Resistance Excellent Excellent
    Service Temperature

    480℃ continuous

    537℃ single

    480℃ continuous

    537℃ single

    Flame Test Non-flammable Non-flammable

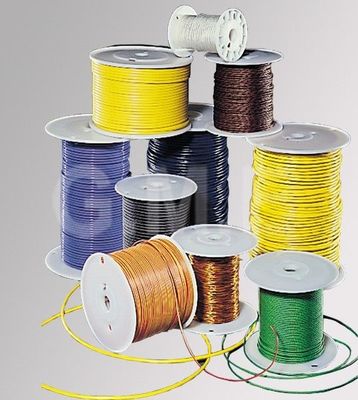

    Fiberglass  Thermocouple Extension Cables K J Type High Accuracy



    4. Delivery



    We could send by express, air or sea. Quick production and quick delivery for you!

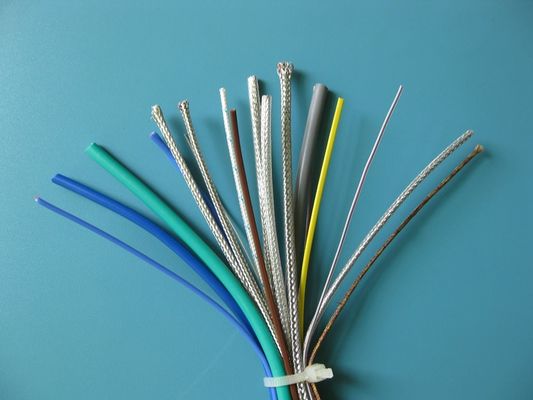

    Fiberglass  Thermocouple Extension Cables K J Type High Accuracy



    Fiberglass  Thermocouple Extension Cables K J Type High Accuracy
