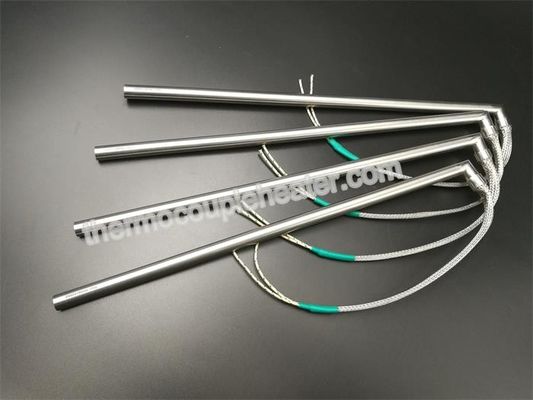

High Watt Density 230v L Type Cartridge Heating Element 1500w 304 Stainless Steel

Large Image : High Watt Density 230v L Type Cartridge Heating Element 1500w 304 Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Boxes or Wooden Cartons
Delivery Time:	7-15 work days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Lead Wire:	Silicon, Glassfiber	Shealth Material:	SS304 ,SS321 ,SS316
Color:	Biack And White	Wattage Tolerance:	+5%, -10%
Application:	Oil, Water Or Other Liquid Etc	Power Source:	Electric
Voltage:	12-480v	Dimension(LWH):	Customizable
Type:	Air Heater, Cartidge Heaters
Highlight:	electric cartridge heaters , cartridge heater with thermocouple

High Watt Density 230v L Type Cartridge Heating Element 1500w 304 Stainless Steel

Description:

) Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

2) Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc

3) cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

4) Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.

Specification:

Heating Wire: Ni80Cr20

Insulation: Magnesium Oxide (High purity)

Outside Diameter:6mm 6.5mm 8mm 10mm 12mm 12.5mm 13mm 15mm 17.5mm 20mm

Inserted Length:Customized.

Overall Length:Customized.

Sheath: Incoloy840&800,SUS304,SUS316,SUS321.

Watts:Customized.

Volts: 12Volts: 110v 200v 220v 230v 240v 380v 415v

Lead Length:Customized.

Lead Exit: straight / 90°

Material	SUS304,316L,321,Incoloy800,840,600
Diameter	3mm~50mm
Max operating temp	870ºC(1600F)
voltage	Voltage:12V-440V or as customer’s demand
Heat intensity	Not exceeding 30Wcm2 (advisable)
Insulation Material	High-purity Mgo
Reisistance wire element	Ni-Cr or FeCr
Lead Connection Option	Crimped or Swaged leads
Lead and type of connection leads	10" Fiberglass Standard(Wire options:silicone/PFA/high temperature fiberglass/SS braided).
Cold areas	Depends on length and diameter 5-25mm
Internal thermocouple	type J,K or E
Thermocouple Location	Disc End, Sheath, Center of Heater;

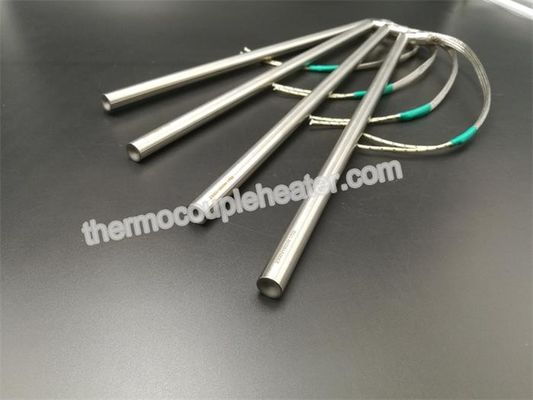

High Watt Density 230v L Type Cartridge Heating Element 1500w 304 Stainless Steel 0

Application:

Semiconductor chamber heating
Semiconductor wafer lead connection
Semiconductor wire and die bonding
Freeze protection and deicing of equipment in cold climates or applications
Humidity Control
Patient Comfort heating used in medical devices
Mold die and platen heating
Seal bars used in packaging equipment
Test sample heating in gas chromatography
