Multi Stranded thermocouple extension cable type k PVC Overall Sheath

China Multi Stranded thermocouple extension cable type k PVC Overall Sheath supplier
Multi Stranded thermocouple extension cable type k PVC Overall Sheath supplier Multi Stranded thermocouple extension cable type k PVC Overall Sheath supplier

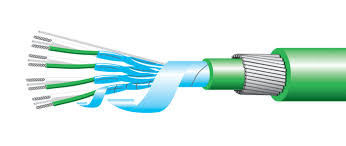

Large Image :  Multi Stranded thermocouple extension cable type k PVC Overall Sheath

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1000 meter
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 10-20 working days after received your payment
Payment Terms: T/T, Western Union, Paypel
Supply Ability: 100000 m per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Calibration: K Type Size: 10*2*1/1.30mm² Solid Core
Insulation Material: PVC,PET Wrap,foil Shield Package: In Wodden Roller
Color Code: ANSI, DIN, LEC, ETC Color: Green(positive), White (negetive)
Drain Wire: Tinned Copper, 0.5mm² (7/0.3mm)
High Light:

extension grade thermocouple wire

,

compensating cable for k type thermocoupl



Multi Stranded thermocouple extension cable type k PVC Overall Sheath





1. Introduction



Thermocouple extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.





Multi Stranded thermocouple extension cable type k PVC Overall Sheath

2. Application



Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.

Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.

Customers from different areas possibly require different color style for the cable, all color standard are available upon request.



Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.

The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.



3. Competitive Advantage

  • Our measurement accuracy of thermocouple cable can reach Class 1
  • 10,000 meters without joints
  • The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
Type   Contractors Color Code
K Wire size Section (mm’) AWG
J 2X1/0.2   32 FB+FB ANSI
E 2X1/0.5   24 FB+FB DIN
T 2X1/0.65   22 FB+FB IEC
N 2X1/0.8   20 FB+FB JIS
S 2X7/0.2   24 FB+FB BS
  2X7/0.3   20 FB+FB NFC
      20 FB+FB
