| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15Wroking Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Cartridge Heater | Thermocouple: | None |
|---|---|---|---|
| Tube Material: | High Quality 304SS, 316L | Resistance Wire: | Ni80Cr20 |
| Insulation Material: | 99.99% High Purity Magnesium | Tolerance Of Length: | +/-1.5% |
| Wattage: | 0.5-15KW | ||
| High Light: | electric cartridge heaters,cartridge heater with thermocouple |
||

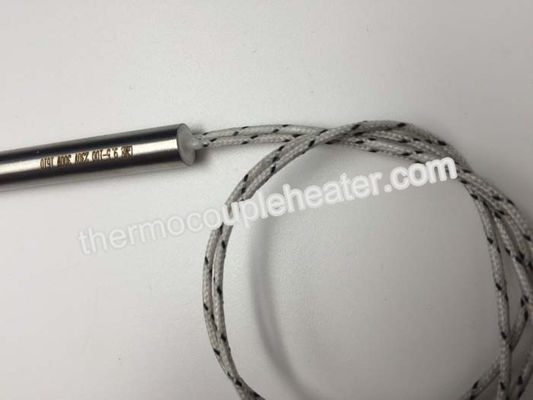

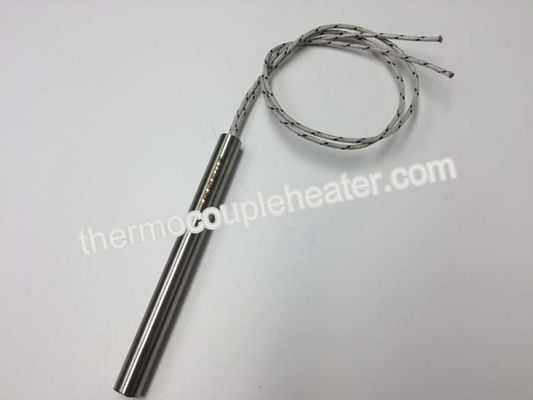

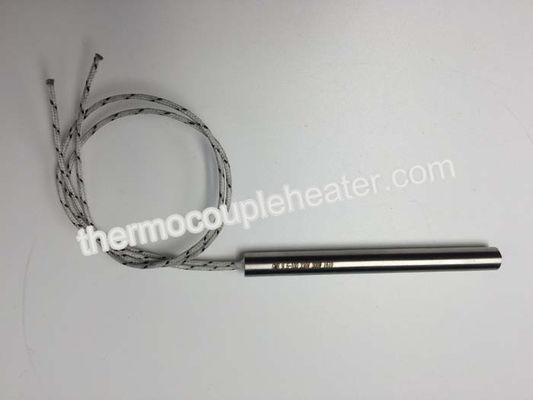

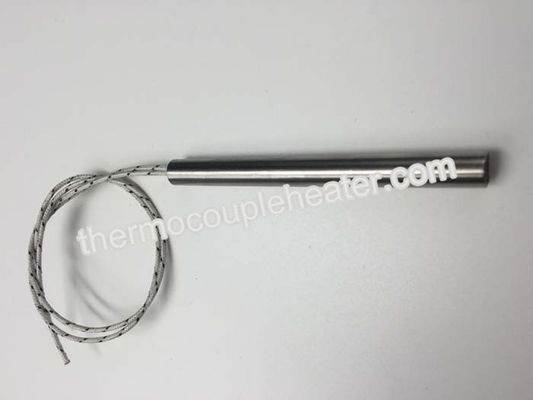

Diameter 9.50mm Cartridge Heaters in 100mm Length With Internally Connected Fiberglass Leads
Description:
Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Technical Details
1. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2. Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3. TC material: High quality TC elements to ensure ±5 ℃tolerance
4. Max working temperature: 400℃
5. High voltage stability test:
6. Less than 0.5mA leak under 1000V for 30 seconds
7. OD range: 3mm-32mm
8. The range of the Total Length: 25mm----2500mm
9. Maximum power density: 40w/cm²
10. Unheated zone: 10mm at lead end and about 5mm at bottom
11. Lead options:
A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside
Feature:
Superior Life Expectancy
Highly Non-corrosive
Available with in built Thermocouple
Standard Sizes Available
Specially selected High Purity
Magnesium Oxide
Applications:
Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in below area,
Hot Runner Bushings
Marking & Sealing Machinery
Packaging Industry
Medical & Laboratory Apparatus
Shoe Making Industry
Die and platents
