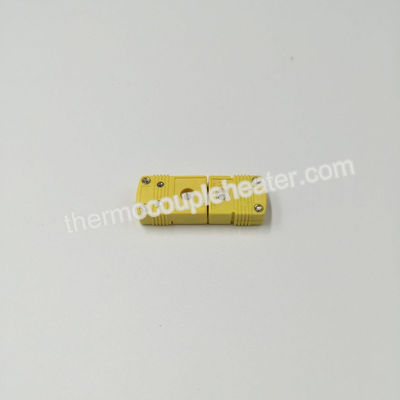

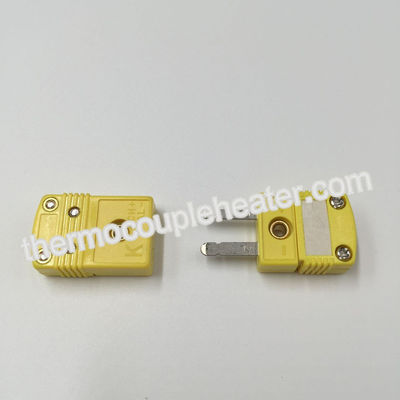

Plastic Mini Thermocouple Components / Thermocouple Connectors Type K With Stock

Thermocouple Accessories Type K Mini Thermocouple Connector With Stock

1. Brief Introduction

Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.

2. Characteristics

1. Thermoplastic body and ceramic material body are both available.
2. Original thermocouple alloy material pins, and spring loaded inserts.
3. Pins are polarized
4. Solid pins and hollow pins are both available, offer good contact and competitive price.
5. Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
6. Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
7. Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.

3. Thermocouple Connector Parameter.

4. Application

This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.
