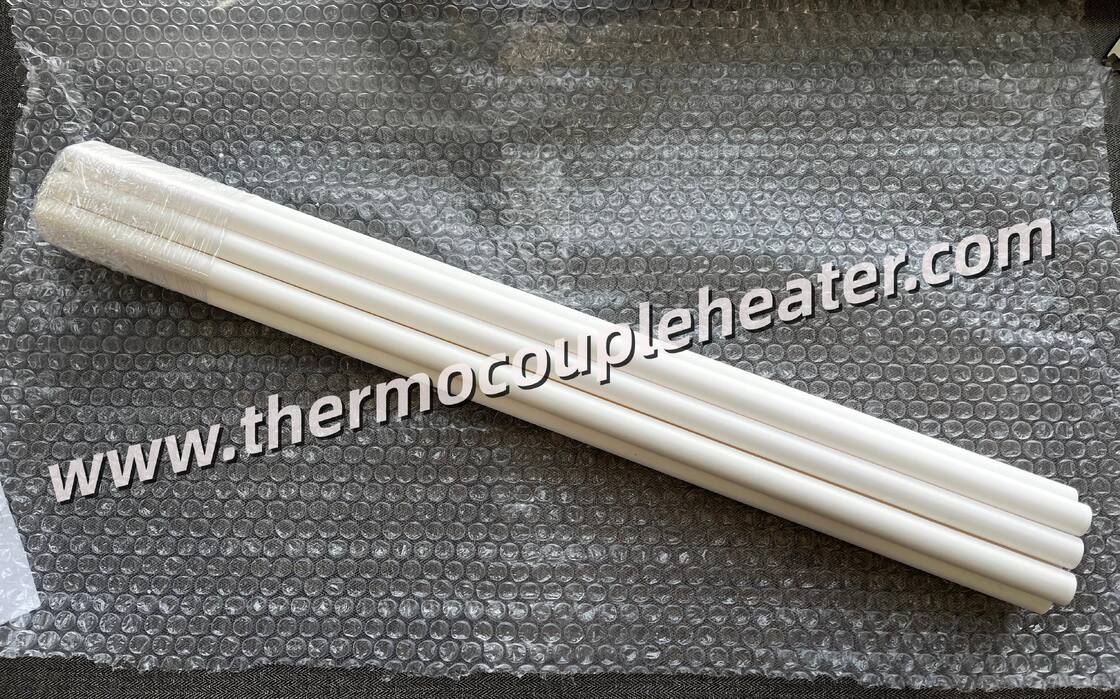

Extreme Heat Alumina Al2O3 Ceramic Thermocouple Sheath Maximize Sensor Lifespan

Large Image : Extreme Heat Alumina Al2O3 Ceramic Thermocouple Sheath Maximize Sensor Lifespan

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Packaging Details:	wooden box
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T,
Supply Ability:	10,000 pcs per month

Contact Now

Detailed Product Description

Usage:	Protection Of Thermocouple Probe	Material:	Alumina
Color:	Ivory / Pink	Size:	Customized
Max.Using Temperature:	1800°C
Highlight:	alumina ceramic thermocouple sheath , high temperature thermocouple sensor sheath , thermocouple sheath for extreme heat

Extreme Heat Alumina Al2O3 Ceramic Thermocouple Sheath Maximize Sensor Lifespan

Description:

Alumina ceramic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.

Feature:

A variety of specifications available

Satisfy various technical request

Lower medium spoilage

Good insulation performance and high temperature resistance

Stiffness texture

Used in all electric products, electric heating products and wear resistant machinery parts

Technical data:

Material	85 Al2o3	95 Al2o3	99.7 Al2o3
Al2o3	0.85	0.94	0.996
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.3
Density: g / cm3	3.4	3.6	3.85
Vickers Hardness	≥ 8.6	9	9
Water Absorption:%	≤ 0.2	≤ 0.085	≤ 0.01
Refractoriness:°C	1200 °C	1600 °C	1800°C
Flexural Strength:Mpa	180	240	280
Wear Rate( at room temperature, erosion, 100 grinding)%	≤ 3	≤ 1	≤ 0.5

One end closed:

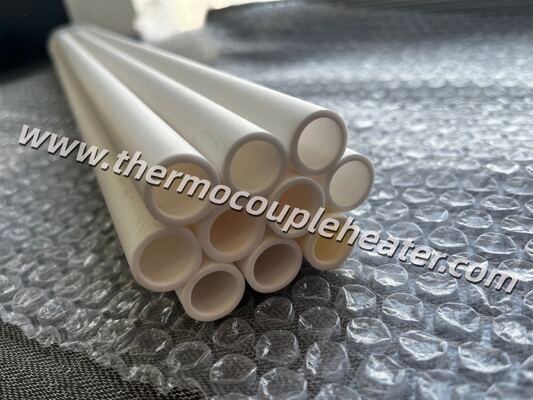

Extreme Heat Alumina Al2O3 Ceramic Thermocouple Sheath Maximize Sensor Lifespan 0

Both ends open:

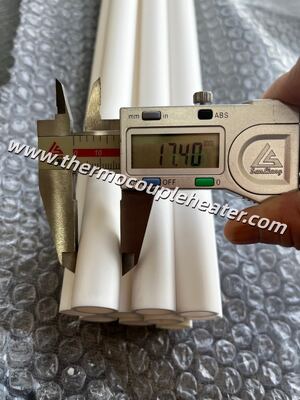

Extreme Heat Alumina Al2O3 Ceramic Thermocouple Sheath Maximize Sensor Lifespan 1
