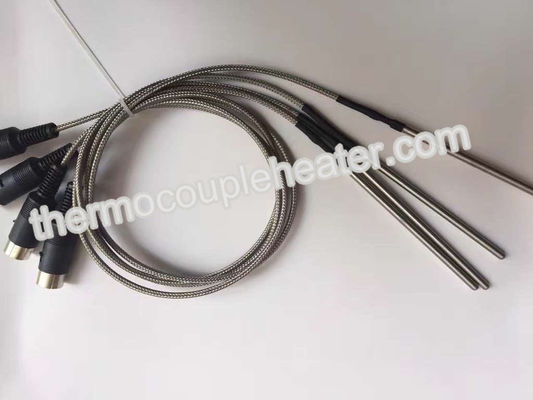

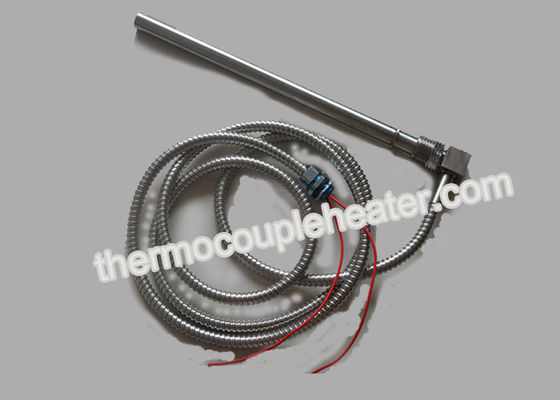

Customized tubular low voltage cartridge heater for injection mold , 12-480v

Customized tubular low voltage cartridge heater for injection mold , 12-480v

    • Customized tubular low voltage cartridge heater for injection mold , 12-480v
    • Customized tubular low voltage cartridge heater for injection mold , 12-480v
  • Customized tubular low voltage cartridge heater for injection mold , 12-480v

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Boxes or Wooden Cartons
    Delivery Time: 7-15 work days
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
    Color: Biack And White Wattage Tolerance: +5%, -10%
    Application: Oil, Water Or Other Liquid Etc Power Source: Electric
    Voltage: 12-480v Dimension(L*W*H): Customizable
    Type: Air Heater, Cartidge Heaters
    High Light:

    electric cartridge heaters

    ,

    cartridge heater with thermocouple

     Made customized tubular Electric Heating Element Cartridge Heater for injection mold




    Description:


    1) Cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.



    2) High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.



    3) Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.


    Specification:


    (1.)Tube diameter: Φ3mm-Φ30mm

    (2.)Tube Material:SS304;SS316,SS321,NICOLOY800 etc

    (3.)Insulation Material:High-purity Mgo

    (4.)Reisistance wire element:Ni-Cr or FeCr

    (5.)Lead Connection Option: Crimped or Swaged leads

    (6.)Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)



    Heat intensity Not exceeding 30Wcm2 (advisable)
    Power Depends on the dimension
    Escape of current (when cold) <=0.1mA a 242 v.
    Insulation (when cold) 5 Min Ohmios 500 Watts minimum
    Dielectric strength 1500v. 1/seg
    Working temperature 750ºG max.
    Tolerance of length +/-1.5%
    Tolerance of diameter -0.01 a -0.06 m/m
    Tolerance of cut of connexion +/-15 mlm
    Power tolerance (w) 5 % - 10 %
    Cold areas

    Depends on length and diameter 5-25mm





     Customized tubular low voltage cartridge heater for injection mold , 12-480v

    Application:


    1) Injection moulding - Internal heating of nozzles

    2) Hot runner systems - Heating of manifolds

    3) Packaging industry - Heating of cutting bars

    4) Packaging industry - Heating of hot stamps

    5) Laboratories - Heating of analytical equipment

    6) Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

    7) Telecommunications: Deicing, Enclosure Heater

    8) Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

    9) Food Service: Steamers, Dish Washers,

    10) Industrial: Packaging Equipment, Hole Punches, Hot Stamp.



    Shipping:



    Customized tubular low voltage cartridge heater for injection mold , 12-480v
