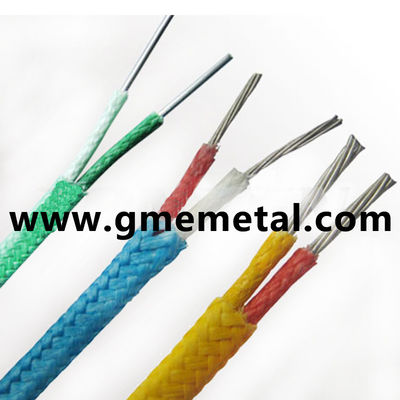

Heat resistant insulated Thermocouple Compensating Cable PVC Material

China Heat resistant  insulated Thermocouple Compensating Cable PVC Material supplier
Heat resistant  insulated Thermocouple Compensating Cable PVC Material supplier Heat resistant  insulated Thermocouple Compensating Cable PVC Material supplier

Large Image :  Heat resistant insulated Thermocouple Compensating Cable PVC Material

Product Details:

Place of Origin: Wenzhou, China
Brand Name: GME
Certification: UL CCC CE ROHS ISO

Payment & Shipping Terms:

Minimum Order Quantity: 50M
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Verified Supplier

Wenzhou, China

  • Product Details
Detailed Product Description
Type: Insulated Conductor Type: Stranded
Application: High Temperature Insulation Material: FEP Or PVC Or Silicone Rubber
Color: White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green Material: FEP PFA PTFE AFR
High Light:

type k thermocouple extension wire

,

compensating cable for k type thermocoupl

1. Description

Type: Insulated Application: high temperature Conductor Material: copper ,Tinned Cooper ,silver copper
Conductor Type: Stranded Insulation Material: FEP or PVC or Silicone Rubber Temperature Range: -60'C ~ +1000'C
Color: White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green Certification: UL CCC CE ROHS ISO Item: High Temperture Cable
Material: FEP PFA PTFE AFR Size: 30~0 AWG Thermal Class: 130/155/180/200/220
Voltage: 450/750V300/500V300/300V.(600/1000V Packing: 100/200/305/500Meter Used: chemical industry,petroleum,power generation,defense and scientific

High Temperature Wire

We supplie a complete line of single and multi-conductor PTFE, MGT, Tefzel, PFA,

FEP, TGGT, TCGT, and ETFE insulated high temperature wire to OEM, aerospace,

Mil-Spec specifications, and UL, and CSA standards.



Our products are used in commercial, industrial, and household ovens, cooking and

drying equipment, and other high temperature and hazardous environments. metallurgy,

chemical industry,petroleum,power generation,defense and scientific research,and

cables for connection between thermocouples and temperature display instrument.



2. Features

Braided Silicone Rubber

150°C and 200°C single conductor silicone rubber insulated sealed braided fiberglass jacket.

Typical applications include for motor leads, lighting fixtures, electronics, ranges, and other high temperature applications.



This wire falls under the Fixture Wire classification with the following designations:

SF-1, SF-2, SFF-1, SFF-2, SEW-1, SEW-2, SEWF-1, SEWF-2 and SRML. It also meets specifications for UL’s VW-1 flame test.


Temperature Rating 150-200° C
UL Styles Associated with Braided Silicone Rubber
3068, 3070, 3071, 3074, 3075, 3101, 3122, 3127, 3231, 3304, 3410



Braid-less Silicone Rubber

150°C and 200°C single conductor silicone rubber insulated wire.

Superior low temperature, moisture, ozone, and chemical protection properties

highlight this product. Typical uses are as appliance, fixture, and motor lead wire.


Temperature Rating 150-200° C
UL Styles Associated with Braided Silicone Rubber
3133, 3134, 3135, 3138, 3139, 3212, 3213, 3214, 3239, 3257, 3268, 3529, 3530



ETFE/ETFE Tefzel 750 (Ethylene Tetrafluoroethylene)

This fluoropolymer resin offers mechanical strength and toughness along with

resistance to heat and chemicals. In addition, they provide easy processing,

high specific dielectric strength, and a low coefficient of friction.

For these reasons, Tefzel ® resins are widely used to make compact wire and cable

constructions that provide long, reliable service in demanding environments.
Temperature Rating 150-200° C
UL Styles Associated with ETFE and Tefzel
1643, 1644, 10086, 10109, 10185, 10202, 10412

FEP (fluorinated ethylene propylene)

FEP wire is a single conductor lead wire with resistance to moisture and fluid.



The extruded fluorinated ethylene propylene (FEP) insulation allow

the diameter to be 20-30% smaller than conventional wire.



FEP offers optimum insulation for smaller applications at half the space of other constructions.



FEP meets FDA Code 121.2555 requirements for appliances and machines



It is impervious to most chemicals, acids, fuels, solvents and water.



Mechanical toughness and low coefficient of fricition allow pull installation of long wire lengths.


Temperature Rating 200° C
UL Styles Associated with FEP
1330, 1331, 1332



PTFE (Polytetrafluoroethylene)

PTFE insulated wire is designed to operate in extreme conditions including

high frequency and high temperature. Common applications include power supply lead wire,

appliance wiring and medical applications. PTFE is highly reliable and provides resistance to

ultra-violet radiation, stress, and chemicals. It is non-toxic and environmentally safe.


Temperature Rating 200-250° C
UL Styles Associated with PTFE
1180, 1199, 1659, 1815



PFA/MFA (perfluoroalkoxy copolymer)

PFA is a perfluoroalkoxy copolymer resin available in pellet or powder.



® PFA combines the processing ease of conventional thermoplastic resins

with the excellent properties of polytetrafluoroethylene (PTFE).



PFA provides superior creep resistance at high temperatures,

excellent low-temperature toughness, and exceptional flame resistance.


Temperature Rating 250° C
UL Styles Associated with PFA
1726, 1727, 1911



TGGT/TCGT ( Glass Glass )

Flexible stranded nickel-coated copper conductor. Constructed of PTFE tapes covered by wrapped fiberglass yarns.

UL5256 has high temperature fiberglass braid jacket applied over the insulation,

which is then treated with a high temperature saturant. Applications include internal wiring of commercial,

industrial and household ovens, cooking and drying equipment,

as well as severe hot spot locations in industrial processing.


Temperature Rating 250° C
UL Styles Associated with TGGS/TGGT/TCGT
5127, 5180, 5256, 5257, 5288, 5331



MGT (Mica-tape, Glass, )

MGT is designed for use within ovens, kilns, furnaces and other high temperature situation.

It is constructed with a tough fiberglass braid covering and insulated with glass reinforced mica tapes.

MGT high temperature electrical cable is particularly suited to the wiring of equipment

within iron and steel mills, brick and cement kilns and glass plants.


Temperature Rating 450/550 ° C
UL Styles Associated with MGS/MGT
5107, 5128, 5359, 5360, 5390, 5425

Heat resistant  insulated Thermocouple Compensating Cable PVC MaterialHeat resistant  insulated Thermocouple Compensating Cable PVC MaterialHeat resistant  insulated Thermocouple Compensating Cable PVC Material
