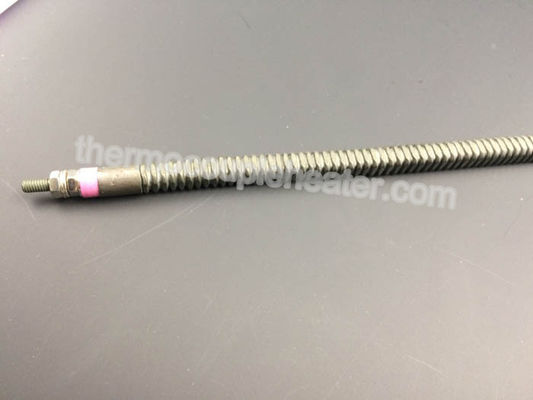

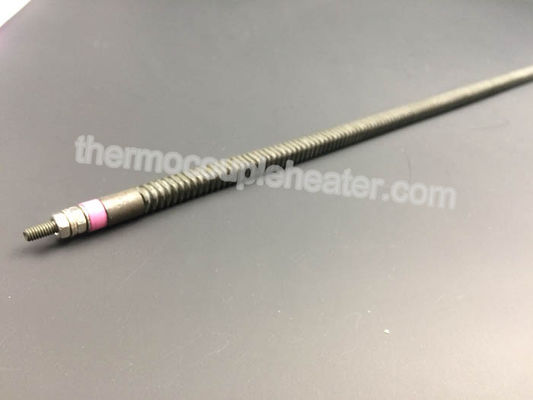

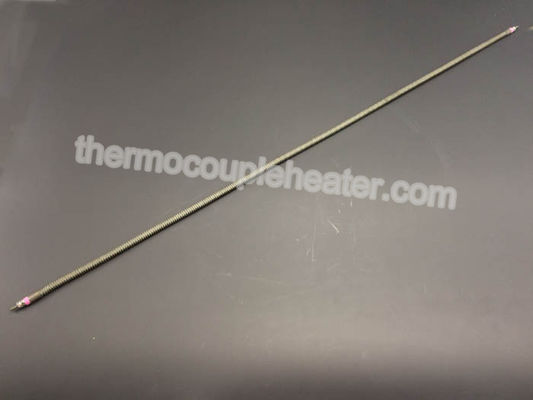

Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath

China Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath supplier
Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath supplier Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath supplier Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath supplier

Large Image :  Flexible Manifold Tubular Heater For Hot Runner 8 x 8mm Stainless Steel Sheath

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or wooden crate or as per your request
Delivery Time: 10 working days or above
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000pcs
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: 8 X 8 Mm Stainless Steel Sheath Flexible Manifold Tubular Heater For Hot Runner Application: Industrial Heating Elements
Sheath Material: Incoloy 800, SS 304, SS 321, SS 316 Voltage: Customized
Resistance Wire: Ni80Cr20 Power: Customized
High Light:

thermostatic tubular heater

,

tubular heater elements

8 x 8 mm Stainless Steel Sheath Flexible Manifold Tubular Heater For Hot Runner




Produce Description



Tubular heater is used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time. Even though tubular heaters are technically rather mature and universal to use, there exist various new innovative solutions for many applications. Screw in tubular heaters are standardized for use in liquids like water. Finned tubular heaters are especially for air heating cabinets or tunnels. Flanged heater are easy to install, control and maintain, unique designer as your requirement. For corrosive environment, titanium material or tubular heating elements with additional sleeving are available .





Specification



Heat intensity

Not exceeding 30Wcm2 (advisable)

Power

Depends on the dimension

Escape of current (when cold)

<=0.1mA a 242 v.

Insulation (when cold)

5 Min Ohmis 500 Watts minimum

Dielectric strength

1500v. 1/seg

Working temperature

750ºG max.

Tolerance of length

+/-1.5%

Tolerance of diameter

-0.01 a -0.06 m/m

Tolerance of cut of connection

+/-15 mlm

Power tolerance (w)

5 % - 10 %

Cold areas

Depends on length and diameter 5-25mm





Technical Data for Flexible Manifold Tubular Heater



Length 300-1550mm 400-2100mm
Max Current 12A 15A
Nominal Voltage Less than 230V Less than 400V
Wattage ±10% ±10%
Dielectric Strength 1.5HV 1.5HV
Insulation MΩ More than 5 MΩ More than 5 MΩ
More than 5 MΩ Less than 0.5 mA Less than 0.5 mA
Minimum Unheated 30mm 35mm
Terminal Pins M3 x .50mm / plain post M4 x .70mm






Feature



1. Designed and built for safety.
2. Broad variety of sizes for different applications;
3. Compact;
4. Easy to maintain;
5. Energy -saving, efficient
6. Flexible tubular heater should be protected against damp during storing or installing to ensure the performance of the heater.
7. In order to be sure of well-distributed load of each and groups heater should be divided before assembling.
8. The tolerance of the resistance of each one can not exceed by 10% each other.
9. At the beginning of the operating the electric furnace , the voltage should be increased slowly and can not be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater
10 . Heater is hard and brittle, please be careful when assembling and maintaining so as to avoid damage.
11.When heater is damaged and need to be changed , the resistance of new heater should follow the increasing resistance. If many are damaged or resistance increased too much, all the heater should be changed.




Application



1. plastic processing and packaging machinery
2. Plastic processing machinery;
3. Water heating appliances;
4. Packaging machineries;
5. Heating chemical solutions;
6. Kitchen appliances;
7. Medical areas;
8.extruders;
9.foundaries;
10.for fastening of Turbine Bolts;
11.Soldering pots;
12.injection blow moulding;
