4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange

4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange
4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange 4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange 4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange 4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange

Large Image :  4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
Style: K, J, Lead Wire: Copper, , Fiberglass Silicon
Insulation Material: MgO Heating Element: Nichrome Resistance
Screw Threads: Available Flange Washer: Available
Connection: Screw Fitting
Highlight:

1in NPT Flange Water Heater

,

240V Flange Immersion Heating Element

,

4500 Watt Water Heater Element

4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater with 1''NPT flange


Description:

Electrical flange immersion heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.
The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.).
Flange immersion heaters can be straight or L-shaped.
.

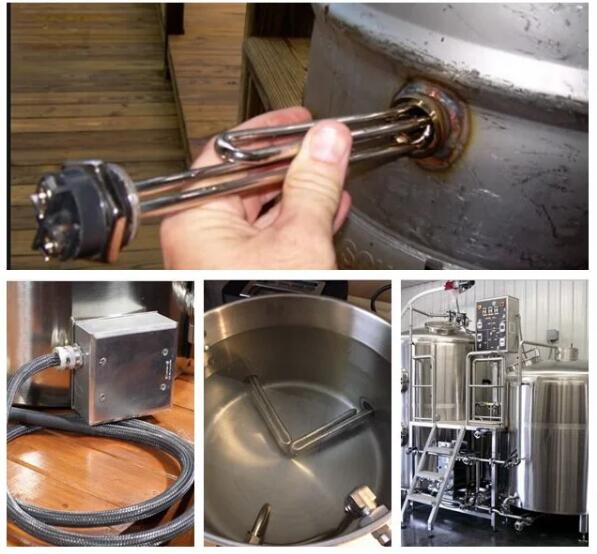

flange immersion heater for solar water tank
Flange size
DN 50 to DN 800
Screw plug size
1"- 3"
Tube Diameter
8-16 mm
Immersion Length
150mm- 1500mm
Heating Element
3 elements, 4 elements, 6 elements, 10 elements etc under customer request
Wattage density
2-8W/cm2
Voltage
UP to 600V
Sheath Material
Stainless Steel 304 316L 310S Copper Incoloy 800 840
Built in thermostat well
Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter

Application:



1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.

4500 Watt 240 Volt Flange Immersion Heating Element For Water Heater With 1''NPT Flange 0
