Electric Cabinet Low Power Industrial Auminium Cast Heater 15W~150W High Efficiency

Large Image : Electric Cabinet Low Power Industrial Auminium Cast Heater 15W~150W High Efficiency

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	60PCS
Packaging Details:	Standard export packing
Delivery Time:	1 week
Payment Terms:	Western Union, T/T
Supply Ability:	10000 Pieces per Month

Contact Now

Detailed Product Description

Power(W)::	15W~150W	Protection Grade::	IP54
Weight::	0.45kg	Power Source::	Electric
Mounting::	35mm DIN Rial	Connection Casing::	Plastic According To UL94
Highlight:	cast aluminum heaters , Cast In Heaters

1. Short description:

Condition:	New	Type:	Air Heater	Power Source:	Electric
Dimension(LWH):	109/184/2647060mm	Weight:	0.45kg	Voltage:	120~240V AC/DC
Power(W):	15W~150W	Certification:	CE	Warranty:	2 Years
After-sales Service Provided:	Engineers available to service machinery overseas	Operating voltage:	120~240V AC/DC	Heating element:	PTC resistor,self regulating and temperature limiting
Heater body:	Extruded aluminium profile,anodised	Mounting:	35mm DIN rial	Connection casing:	Plastic according to UL94 V-0
Protection grade:	IP54	Installation position:	Vertical	Connection:	3-pole terminal 0.5-1.5mm2
Length:	15W~150W(65mm~220mm)	Storage temperature:	-20~+70℃

2. Product Features:

Large setting range
Small size
Simple to mount
High switching performance

HNT800: These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value.

The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.

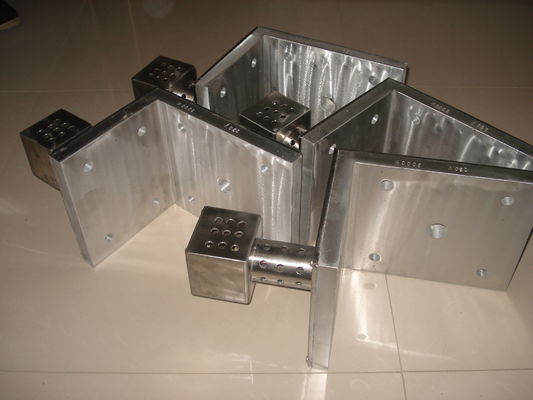

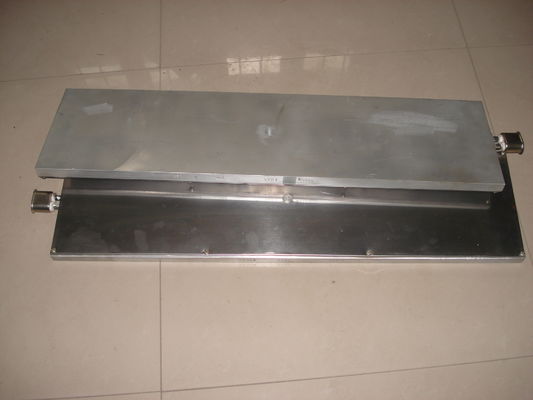

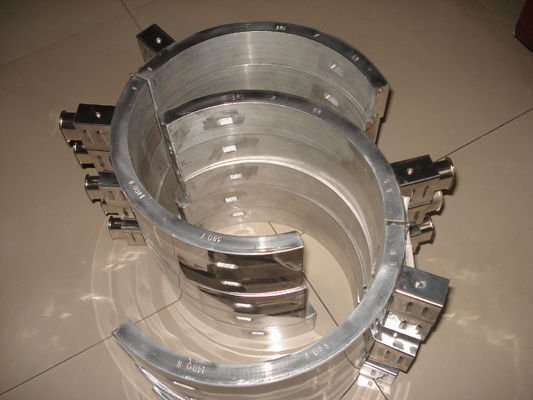

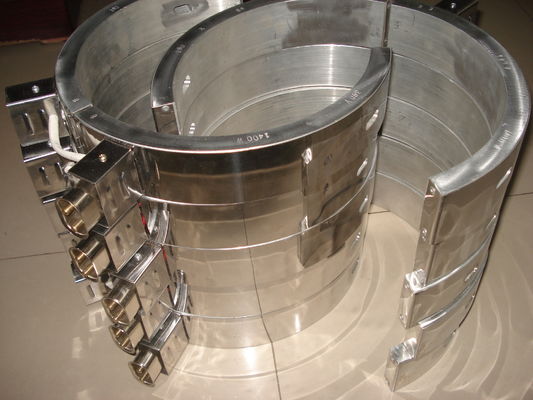

Cast-in heaters are available in a variety of designs and styles suitable for different applications. Our cast-in band heaters are available with cooling tubes for heating and cooling barrels of plastic processing extruders. They are very efficient and provides long lasting trouble free service. This cast-in heaters are made in aluminum, brass and bronze. The type of alloy to be casted depends upon the application, max operating temperature & watt density. We built every technically possible heaters as per your requirement.

3. Technical parameters

Operating voltage	120-240V AC/DC
Heating element	PTC resistor, self regulating and temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm2(with wire end ferrule)and rigid wire 0.5-1.5mm2
Connection casing	plastic according to UL94 V-0,black
Mounting	Clip for 35mm DIN rail, EN 60715
Fitting position	Vertical
Operating/Storage temperature	-20 to +70°C
Protection type	IP54
Accessories	Screw fixing

4. Packaging & Delivery

Packaging Details:	High Efficiency Electric Cabinet Low Power Industrial Auminium Cast Heater Standard export packing Qty of Carton: 60PCS/CTN; Carton Size: 494522CM; N.W. : 15KG; G.W. : 16KG.
Delivery Detail:	Shipped in about 1 week after payment

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
