Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 1-10 working days after received your payment |
| Payment Terms: | T/T, Western Union,Paypel |
| Supply Ability: | 3,000 pcs per month |
| Product Name: | Cartridge Heater | Application: | Industrial Heating |
|---|---|---|---|
| Maximum Temperature: | 700°C | Diameter: | 5.9mm |
| Tolerance: | +/- 1.5% | Heating Resistance: | Cr20Ni80 |
| Voltage: | 220V | Wattage: | 350W |
| Connection Type: | Connection Outside | Connection Wire: | Fiberglass |
| Water Proof: | IP 65 | Tube Material: | Stainless Steel 304 |
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

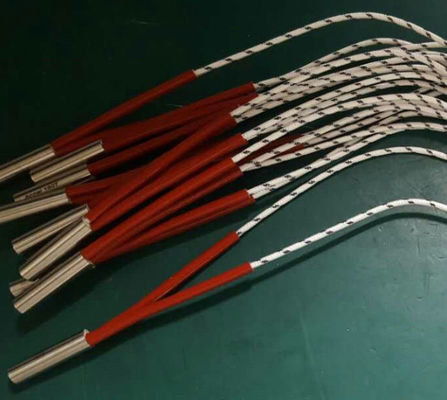

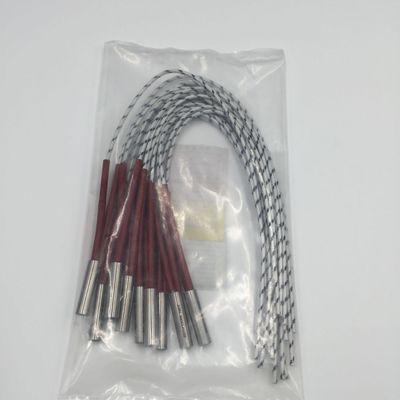

Mini Size Cartridge Heaters 220V 350W OD 5.9 x 100mm Outside Connection
1. Description
A cartridge heater is a device that is usually tubular and is inserted into drilled holes of metal blocks for heating.
Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)
Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%.
Mostly, cartridge heater is used for heating solids such as injection presses heating plates or various tools, it can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
The majority of applications do not require maximum watt/in². Use a watt density only as high as needed. Take advantage of the safety margin provided by using ratings less than the maximum allowed. Select space heaters for most even heat pattern rather than the highest possible wattage per heater
| Resistance wire | NiCr20/80 |
| Material | stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
| Maximum Temperature | 800°C |
| Standard cold length at lead exit | 0.375" |
| Standard cold length at disc end | 0.25" |
| Thermocouple | K or J |
| Cable wire | silicone wire, metal wire, fiberglass wire, etc |
| Flange/thread | M12, M14, M16, 1", 1 1/4", 1 1/2", 2",etc |
| Diameter | 5.9mm |
| Voltage | 220V |
| Wattage | 350W |
| Water proof | IP65 |
2. Applications
1. Cartridge heater applied in mold heating has been very popular
2. Heating system in plastic machinery.
3. Pharmaceutical production
4. Heat Treatment Lab
5. Chemical industry and so on
3. Competitive Advantage
1. We manufacture high density cartridge heaters; Minimum diameter can reach 2.6mm.
2. All lead wires are pure nickel
3. Insulating material can be resistant to the high temperature of 400 degree.
4. Our product can meet IP65 waterproof
5. We produce cartridge heater with distributed wattage.
