Thermocouple Components Black Type J Mini Thermoplastic Connectors Male And Female

China Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female supplier
Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female supplier Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female supplier Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female supplier Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female supplier

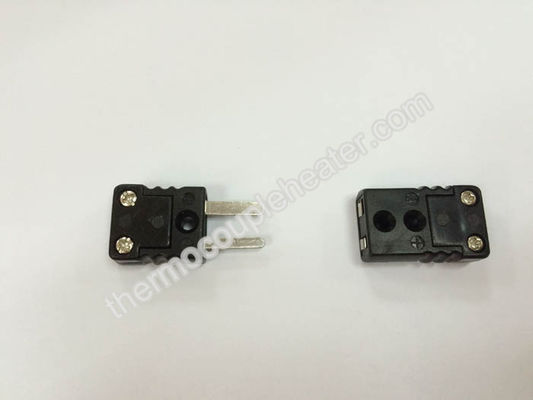

Large Image :  Thermocouple Components Black Type J Mini Thermoplastic Connectors Male And Female

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Type J Mini Thermoplastic Thermocouple Connectors

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Type J Mini Thermoplastic Thermocouple Connectors Temperature Range Range: 0--600 Centigrade
Materials: Thermoplastic Types: K, S, N, J, T, E
Usage: Industrial, Thermocouple Accessories Material: Black
Conductor Material:: Chromel, Alume Application: Industria
High Light:

thermocouple parts and components

,

thermocouple assemblies

Thermocouple Accessories Black Type J Mini Thermoplastic Connectors Male And Female




1. Description



Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.



Connector is widely used in thermocouple and RTD circuits ,best solution for quick and good contact. Different models are on offer for different applications.





2.  Characteristics



  • Solid pins and hollow pins are both available, offer good contact and competitive price.
  • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
  • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
  • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
  • Thermoplastic body and ceramic material body are both available.
  • Original thermocouple alloy material pins, and spring loaded inserts.
  •  Pins are polarized


3. Thermocouple Connector Parameter.


Wire size



  • Accepts wires from 0.2 mm to 2.0 mm.
  • Maximum cable diameter 8.0 mm.


Max. Temperature



  • 200 Deg. C for thermoplastic body
  • 650 Deg. C for ceramic body

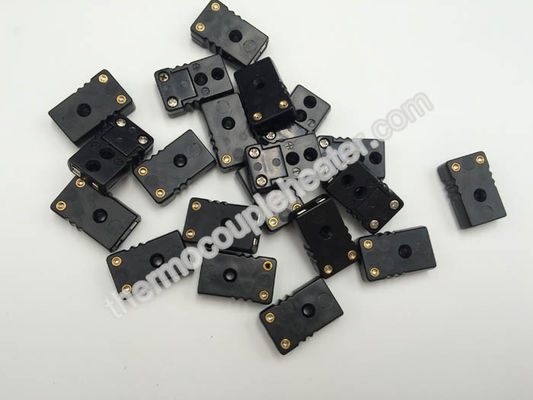

Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female

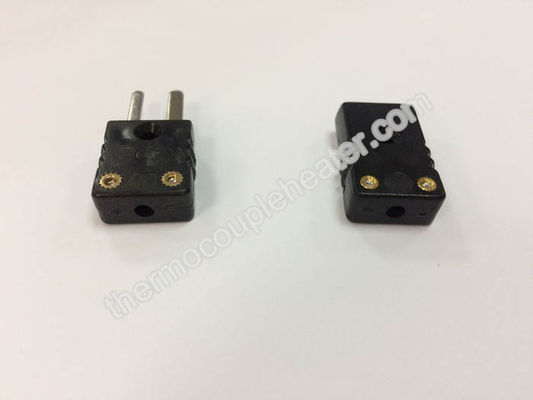

Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female


Mark Material Color
K Nickel chrome - nickel silicon yellow (ANSI), green (IEC)
J Iron-copper nickel Black
N Silicon nickel chrome - nickel silicon magnesium Orange
T Copper - copper nickel blue
E Copper nickel- chrome nickel purple
R/S Copper - copper nickel green



4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


5. Thermocouple Connector Connector



  • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
  • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
  • Low MOQ: It can meet your promotional business very well.
  • OEM Accepted : We can produce any your design as long as you provide us the drawing.
  • Good Service : We treat clients as friend.

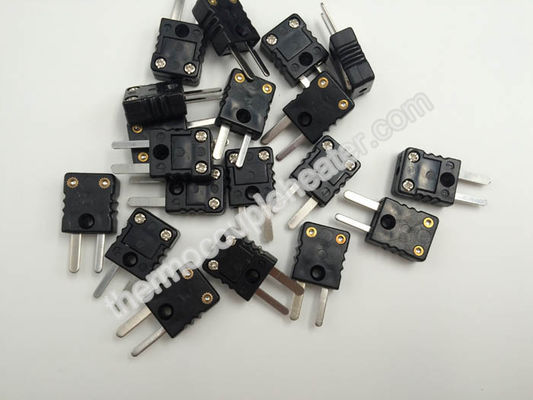

Thermocouple Components Black Type J  Mini Thermoplastic Connectors Male And Female
