| Product Name: | Thermocouple Thermowell With Flange | Application: | Thermocouple |
|---|---|---|---|
| Material: | Stainless Steel | Theory: | Temperature Sensor |
| Usage: | Industrial, Thermocouple Accessories | Wanranty: | 1 Year |
| Dimensions: | Flange, Thread, Welding | Tube Neck Welding: | Customized |
| Highlight: | stainless steel thermowell,thermocouple thermowell assemblies |
||

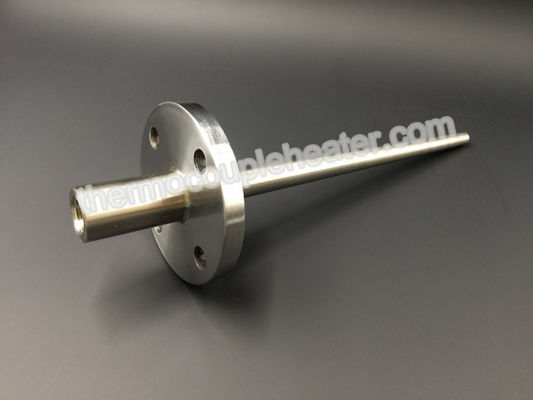

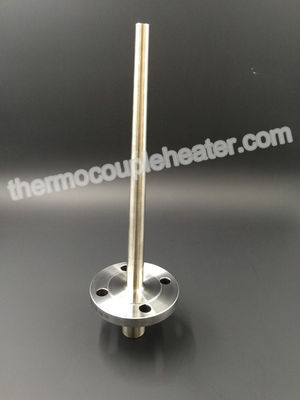

Stainless Steel Thermocouple Protection Tube Thermowell With DN25 Flange
1. Brief Introduction
Thermowells are tubular fittings used to protect temperature sensors installed in industrial processes. A thermowell consists of a tube closed at one end and mounted in the process stream. A temperature sensor such as a thermometer, thermocouple or resistance temperature detector is inserted in the open end of the tube, which is usually in the open air outside the process piping or vessel and any thermal insulation. The process fluid transfers heat to the thermowell wall, which in turn transfer heat to the sensor.
2. Characteristics
3. Parameter.
Flange Standard
| ANSI B16.5 / ASME B16.47 Standard: 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS. Welding Neck Flange, Slip-On Flange, Blind Flange,etc. |
| EN1092-1 flange. |
| DIN FLANGES: DIN2527, DIN2573, DIN2576, DIN2633, DIN2566 DIN2543, DIN2573, DIN2544/2545, DIN 2632 / 2634/2635; |
| UNI FLANGES: UNI 2253/2254/22762278/22812284/ 6083/6084/ 60896093 Plate, Slip-On, Welding-Neck, Blind Flanges,etc.; |
| GOST flange: GOST12820-80 and GOST 12821-80 flange. |
| BS4504 / EN1092-1 / TABLE-E FLANGES: PN10, PN16, PN25, PN40 Flanges; |
| JIS B2220 / KS B1503 FLANGES: 5K, 10K, 16K, 20K, 30K Flanges. |
4. Application
The thermowell protects the instrument from the pressure, flow-induced forces, and chemical effects of the process fluid. Typically a thermowell is made from metal bar stock. The end of the thermowell may be of reduced diameter (as is the case with a tapered or stepped shank thermowell) to improve the speed of response.
