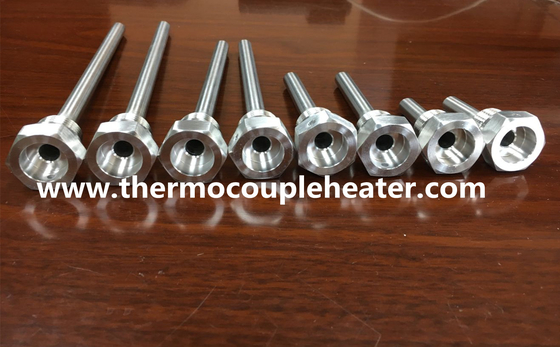

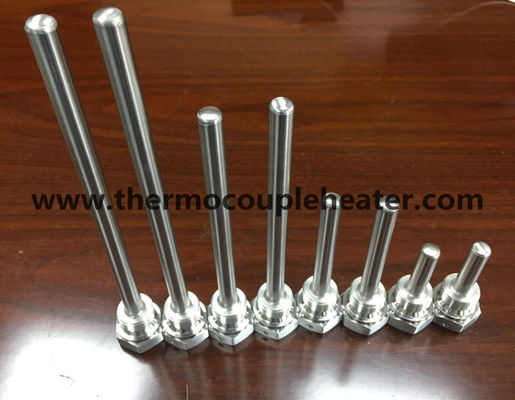

Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer

Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer

    • Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer
    • Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer
  • Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: Standard Exporting Carton
    Delivery Time: 10-20working days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Brass Connection: Flange, Thread, Welding
    Construction: Machined From Solid, Two-part Welded Warranty: 1 Year
    Sample: Available Application: Mounting Temperature Sensors In Pipes And Tanks
    High Light:

    Stainless Steel Thermocouple Thermowell

    ,

    Bimetallic Thermometer Thermocouple Thermowell

    ,

    Bimetallic Thermometer Stainless Steel Thermowell

    Thermocouple Thermowell Stainless Steel Protective Pipe For Bimetallic Thermometer





    1. Brief Introduction​



    Thermowells are tubular fittings used to protect temperature sensors installed in industrial processes. A thermowell consists of a tube closed at one end and mounted in the process stream. A temperature sensor such as a thermometer, thermocouple or resistance temperature detector is inserted in the open end of the tube, which is usually in the open air outside the process piping or vessel and any thermal insulation. The process fluid transfers heat to the thermowell wall, which in turn transfer heat to the sensor.



    2. Features



    Ideal for when an application demands the removal of a sensor without interrupting the process.
    Our thermowells can either be of welded construction with a parallel sheath or machined from solid with a parallel or tapered sheath.
    Available in a variety of constructions with either screwed BSP or NPT male process entry. Other threads are available upon request.
    Custom built in a wide range of sheath materials to meet customer requirements on a prompt delivery.



    3. Drawing

    Stainless Steel Thermocouple Thermowell For Bimetallic Thermometer





    4. Application



    Thermowells are available for use with all Temperature Instrumentation and Control Products, including: Thermometers, Thermocouples, RTDs, Temperature Recorders, and Temperature Controllers.
