High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core

China High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core supplier
High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core supplier High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core supplier

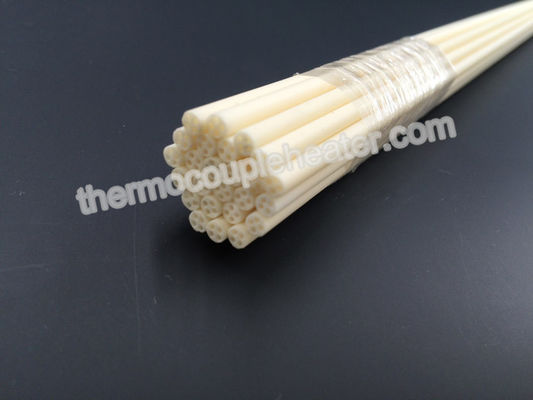

Large Image :  High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: 99.5% AL2O3 Insulator

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Wood Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Thermocouple Ceramic Insulator Temperature Range Range: 0--1800 Centigrade
Bore: Single,two,four Theory: Temperature Sensor
Usage: Industrial, Thermocouple Accessories Material: 99.5%Al2O3
Shape: Bushing Color: Pink/ivory/pale Yellow/deep Yellow/white
High Light:

thermocouple accessories

,

thermocouple parts and components

High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core




1. Thermocouple Ceramic Insulator Brief Introduction



Ceramic parts are divided into many types according to the AL2O3 content. Different ceramic types are used in different applications .


They are used to provide electrical insulation to the couple which is used for sensing the temperature inside the furnace. These are single, twin , Four hole bore . These are generally used in small lengths of 25mm. However longer lengths are sometime preferred in critical applications


Al2O3 content determines the measuring temperature level,  Al2O3 content higher, the temperature is higher.


Alumina has a wide application due to its versatility and low material cost. Alumina possesses a high melting point, strong hardness, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion. Call for any custom production request.



Product Name
High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core
Material
99.5% AL2O3
Compressive strength
2300Mpa
Certificate
ISO9001
OEM service
available
Dielectric strength
10 AC-kv/mm
Used
Thermocouple manufacturing



2. Thermocouple Ceramic Insulator Characteristics

  • Available in Wide Range of Sizes
  • Single Hole, Two Hole and Four Hole Insulator
  • Service temperature up to 1800°c
  • Various processing methods make right tubes for different usage, including extruding, casting, pressing etc.
  • Tubes can be grinding, drilling holes etc according to the requirements of customers.



3. Thermocouple Ceramic Insulator Parameter.

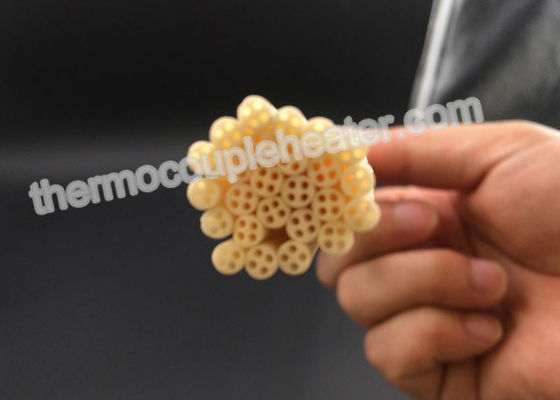

High Alumina 99.5% AL2O3 Ceramic Thermocouple Insulators With Four Core



SINGLE HOLE ROUND INSULATORS

Outside Diameter
(Inches)

Inside Diameter
(Inches)

1/4

1/8

1/4

3/32

1/4

1/16

3/16

3/32

3/16

1/16

1/8

1/16

1/16

1/32

1/32

0.02



TWO HOLE ROUND INSULATORS

Outside Diameter
(Inches)

Inside Diameter
(Inches)

1/4

5/64

1/4

1/16

3/16

1/16

1/8

0.04

1/8

1/32

1/8

0.02

1/16

1/64

3/64

0.01

1/32

0.005



FOUR HOLE ROUND INSULATORS

Outside Diameter
(Inches)

Inside Diameter
(Inches)

1/4

1/16

3/16

3/64

3/16

1/32

1/8

0.02

1/16

1/64

1/32

0.005



4. Thermocouple Ceramic Insulator Application



  • Furnace tube for resistance furnaces, heat treatment furnaces
  • Chemical analysis for steel and iron
  • Various insulationg parts for high temperature resistance and etching resistance
  • Temperature measuring meters
  • Protection and insulation for thermocouples and thermometers
