2016 New Design Electrical Cartridge Heaters With Extra - High Watt Density

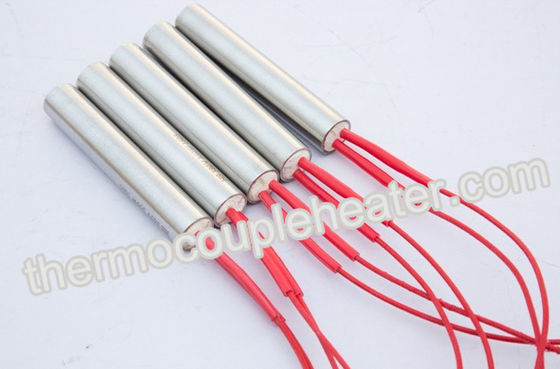

Large Image : 2016 New Design Electrical Cartridge Heaters With Extra - High Watt Density

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Boxes or Wooden Cartons
Delivery Time:	7-15 work days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Lead Wire:	Silicon, Glassfiber	Shealth Material:	SS304 ,SS321 ,SS316
Color:	Biack And White	Wattage Tolerance:	+5%, -10%
Application:	Oil, Water Or Other Liquid Etc	Power Source:	Electric
Voltage:	12-480v	Dimension(LWH):	Customizable
Type:	Air Heater, Cartidge Heaters
Highlight:	cartridge immersion heater , cartridge heater with thermocouple

2016 New Design Electrical Cartridge heaters

Description:

_{Cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.}

2016 New Design Electrical Cartridge Heaters With Extra - High Watt Density 0

_Application:

Our Products are mainly used in Petroleum, Chemistry, Electric, Machinery Etc.

Specification:

Sheath material:	SS304,321,316,INCONEL600
Wattage Tolerance:	+5%, -10%
Resistance tolerance:	+10%, -5%
Voltages available:	380V,240V, 220V,110V,36V,24V or 12V
Max operating temp:	800ºC
Length tolerance:	±1 mm
Diameter tolerance:	-0.02mm
Standard Cold Zone:	5-10mm;
Delivery time:	7-10 working days.
Thermocouple Location:	Type J or K are available
Insulation resistance (cold):	≥ 500 MΩ;
Maximum leakage current (cold):	≤ 0.5 mA;

2016 New Design Electrical Cartridge Heaters With Extra - High Watt Density 1
