Thermocouple Components RTD Ceramic Connection Board / terminal block

China Thermocouple Components RTD Ceramic Connection Board / terminal block supplier

Large Image :  Thermocouple Components RTD Ceramic Connection Board / terminal block

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Thermocouple Connection Block

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Thermocouple Connection Block Temperature Range Range: 0--550 Centigrade
Materials: Ceramic, Steatite Theory: Temperature Sensor
Usage: Industrial, Thermocouple Accessories Types: 2-6 Pins
Warranty: 6 Months Application: Industrial
High Light:

thermocouple parts and components

,

thermocouple assemblies

Thermocouple and RTD Ceramic Connection Board / terminal block





1. Connection Block Brief Introduction



Terminal block: ceramic,bakelite
Available models: KNE, KSE, KB, DANA, NAA, TL, TS
You can choose 2, 3, 4, 5, 6 terminals



terminal blocks

1) Available models: KNE, KSE, KB, DANA, NAA, TL, TS
2) It can be Ceramic or Bakelite material
3) Mounting holes distance: 40mm, 36mm, 33mm, etc.

4)Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3

5)Bakelite material is also available, black color

6)Terminal material:nickel coated brass

7)Screw material: stainless steel, nickel coated iron



2. Connection Block Characteristics

  • Available types: 40mm, 33mm, 27mm, 36mm, 21mm, 46mm.
  • Standard dimensions fit various connection heads
  • Ceramic material: talc powder & ole fin, 92% Al2O3, 99% Al2O3.
  • Bakelite material blocks are available, black colour.
  • Terminals material: nickel coated brass.
  • Screws material: stainless steel, nickel coated iron.
  •
Strength of Electric breakdown strength 15—20KV/mm
Coefficient of linear expansion (6.5—8)×
Tolerance of size ≤±0.1mm
Application domain

Widely used in power supply connecting,top grade sockets and sockets for special industry,power supply,transformer,instrument,TV set,autocar ect.It is ideal choice for customer in different industries.





Thermocouple Components RTD Ceramic Connection Board / terminal block

Thermocouple Components RTD Ceramic Connection Board / terminal block



4. Connection Block Application



Widely used in power supply connecting, top grade sockets and sockets for special industry, power supply,

transformer, instrument, TV set, autocar ect.



It is ideal choice for customer in different industries.

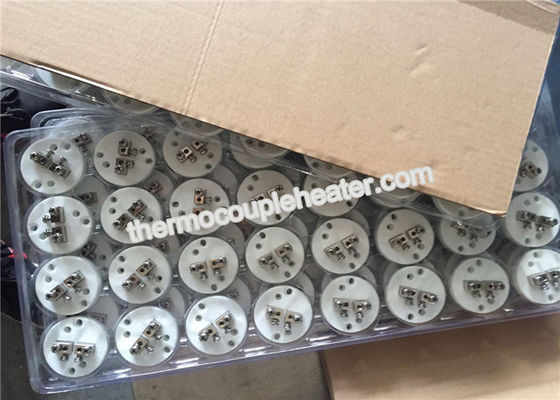

5. Transportation



Thermocouple Components RTD Ceramic Connection Board / terminal block
