| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15Wroking Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Cartridge Heater | Lead Wire Material: | Glass Fiber, Silicon, PTEE |
|---|---|---|---|
| Water Proof: | IP65 | Warranty: | One Year |
| Wattage Tolerance: | +5℃/-10℃ | Maximum Watt Density: | 30Wcm² |
| Resistance: | >50MΩ | Diameter: | 3mm-20mm |
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

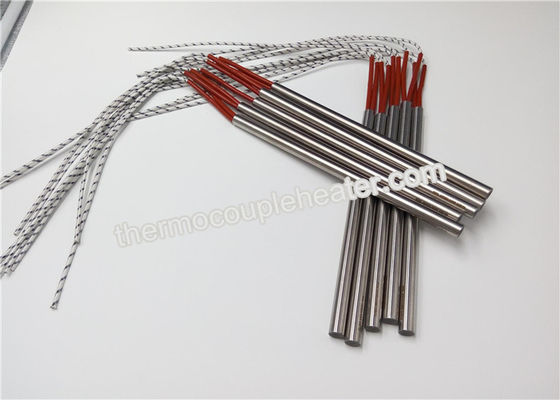

High Density Cartridge Heaters, Electric Tube Heating Elements
1)Resistance wire OCr20Ni80
2)Min.dia.2mm,length:20mm
3)common 10w/cm2
4)high or low wattages
Applications:
High precision single end electric heat pipe is done by metal shell loaded high resistance electric thermal bonding wire heating material, around the heating wire with high thermal conductivity of high purity magnesium oxide as a filling material filling and compaction, good insulation performance.This product has the advantages of large power, high thermal efficiency, heat faster.Commonly used in plastic packaging, small mould heating, analysis instrument, the cigarette industry,shoe industry, semiconductor welding heat input, die casting, all kinds of gas expands the cooling effect of heating.
Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)
Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.
|
Cartridge heaters used in molding are the highest quality available.These heaters are the result of many years experience perfecting high watt-density elements capable of long life at elevated temperatures.Early achievement by our design and manufacturing engineers met the challenge of high heat technology for industrial users and provided an excellent manufacturing base for all of our cartridge heaters. |
|
| Technical data of high density cartridge heaters, electric tube heating element | |
| Wattage Tolerance | +5%, -10% |
| Diameter of cartridge heater | 3-22mm, or customized |
| Max operating temp | 800 degree celsius |
| Certification | ISO9001, CE |
| Material | 1Cr18 Ni9Ti stainless steel, etc |
| After-sale services | Engineers available to service machinery overseas |
| Warranty | 1 year |
| Delivery date | 7-15Days |
| Application of cartridge heater | |
|
|
Competitive advantages:
1. We manufacture high density cartridge heaters, Minimum diameter can reach 3mm.
2. All lead wires are pure nickel
3. Insulating material can be resistant to the high temperature of 400 degree.
4. Our product can meet IP65 waterproof
5. We also produce Split cartridge heater.
