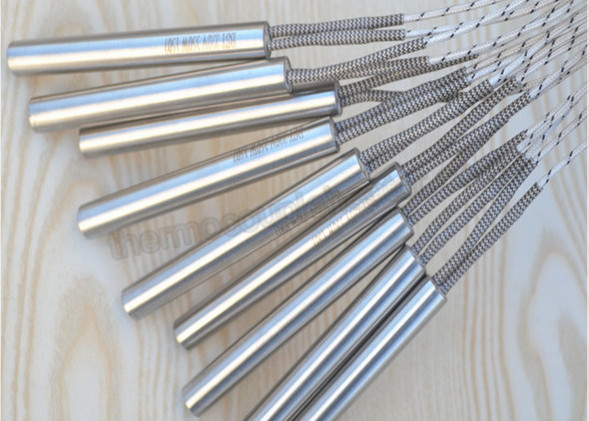

High Resistance Tube Cartridge Heater 3mm/4mm/5mm/6mm Diameter

High Resistance Tube Cartridge Heater 3mm/4mm/5mm/6mm Diameter

High Resistance Tube Cartridge Heater 3mm/4mm/5mm/6mm Diameter

Product Details:

Place of Origin: China
Brand Name: GME
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Certification: CE,ISO Voltage: 12V 24V 110V 220V 380V
Resistance Tolerance: -5% +5% Application: Air, Liquid,mould
High Light:

cartridge immersion heater


cartridge heater with thermocouple

high resistance tube cartridge heater 3mm/4mm/5mm/6mm diameter




Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas). Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands.



Technical data

Tube diameter: Φ2mm-Φ30mm
Tube Material:SS304;SS316,SS321,NICOLOY800 etc.
Insulation Material:High-purity Mgo
Reisistance wire element:Ni-Cr or FeCr
Wattage density: high/middle/low(5-25w/cm2)
Lead Connection Option: Crimped or Swaged leads
Lead wire type: 10" Standard(/silicone high temperature fiberglass)




Semiconductor Chamber Heating
Semiconductor Wafer Lead Connection
Semiconductor Wire and Die Bonding
Freeze Protection and Deicing of Equipment in Cold Climates or Applications
Humidity Control
Patient Comfort Heating used in Medical Devices
Mold Die and Platen Heating
Seal Bars used in Packaging Equipment
Test Sample Heating in Gas Chromatography
Heat Transfer Machine


High Resistance Tube Cartridge Heater 3mm/4mm/5mm/6mm Diameter
