K / J type Flat Pin Mini OMEGA Thermocouple Connectors

Home ProductsThermocouple Components

K / J type Flat Pin Mini OMEGA Thermocouple Connectors

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

K / J type Flat Pin Mini OMEGA Thermocouple Connectors

China K / J  type Flat Pin Mini OMEGA Thermocouple Connectors supplier
K / J  type Flat Pin Mini OMEGA Thermocouple Connectors supplier K / J  type Flat Pin Mini OMEGA Thermocouple Connectors supplier K / J  type Flat Pin Mini OMEGA Thermocouple Connectors supplier

Large Image :  K / J type Flat Pin Mini OMEGA Thermocouple Connectors

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Mini RTD and Thermocouple Connector

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Mini RTD And Thermocouple Connector Temperature Range Range: 0--600 Centigrade
Materials: Nickel-plated Iron Types: K, S, N, J, T, E
Usage: Industrial, Thermocouple Accessories Material: Yellow, Black, White,
Conductor Material:: Chromel, Alume Application: Industria
High Light:

thermocouple parts and components

,

thermocouple assemblies

K / J type Flat Pin Mini OMEGA Thermocouple Connectors




1. Description



Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.





2.  Characteristics



  • Solid pins and hollow pins are both available, offer good contact and competitive price.
  • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
  • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
  • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
  • Thermoplastic body and ceramic material body are both available.
  • Original thermocouple alloy material pins, and spring loaded inserts.
  •  Pins are polarized


3. Thermocouple Connector Parameter.


Wire size



  • Accepts wires from 0.2 mm to 2.0 mm.
  • Maximum cable diameter 8.0 mm.


Max. Temperature



  • 200 Deg. C for thermoplastic body
  • 650 Deg. C for ceramic body

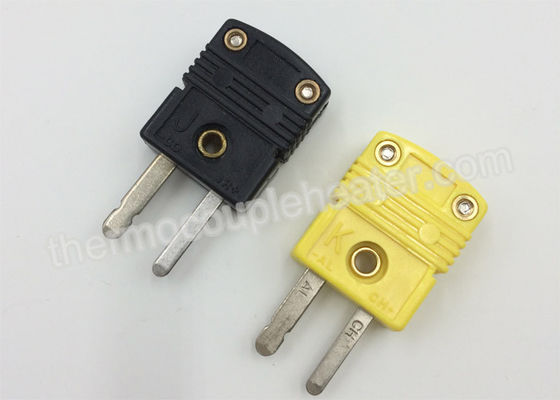

K / J  type Flat Pin Mini OMEGA Thermocouple Connectors

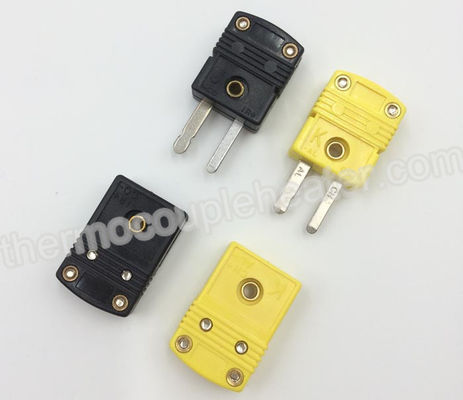

K / J  type Flat Pin Mini OMEGA Thermocouple Connectors

Mark

Material

Color

K

Nickel chrome - nickel silicon

yellow (ANSI), green (IEC)

J

Iron-copper nickel

Black

N

Silicon nickel chrome - nickel silicon magnesium

Orange

T

Copper - copper nickel

blue

E

Copper nickel- chrome nickel

purple

R/S

Copper - copper nickel

green



K / J  type Flat Pin Mini OMEGA Thermocouple Connectors



4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


5. Thermocouple Connector Connector



  • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
  • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
  • Low MOQ: It can meet your promotional business very well.
  • OEM Accepted : We can produce any your design as long as you provide us the drawing.
  • Good Service : We treat clients as friend.
