Standard Male And Female RTD Thermocouple Connectors Type K / J

Home ProductsThermocouple Components

Standard Male And Female RTD Thermocouple Connectors Type K / J

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

Standard Male And Female RTD Thermocouple Connectors Type K / J

China Standard Male And Female RTD Thermocouple Connectors Type K / J supplier
Standard Male And Female RTD Thermocouple Connectors Type K / J supplier Standard Male And Female RTD Thermocouple Connectors Type K / J supplier Standard Male And Female RTD Thermocouple Connectors Type K / J supplier

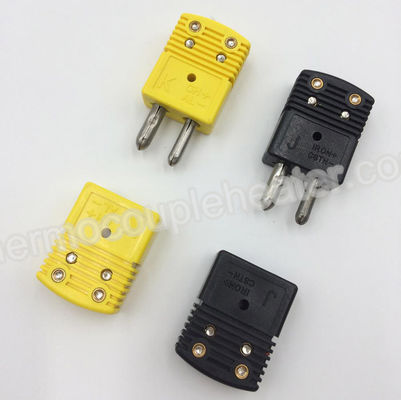

Large Image :  Standard Male And Female RTD Thermocouple Connectors Type K / J

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Standard RTD and Thermocouple Connector

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Standard RTD And Thermocouple Connector Temperature Range Range: 0--600 Centigrade
Materials: Nickel-plated Iron Types: K, S, N, J, T, E
Usage: Industrial, Thermocouple Accessories Material: Yellow, Black, White,
Conductor Material:: Chromel, Alume Application: Industria
High Light:

thermocouple accessories

,

thermocouple assemblies

Standard Male And Female RTD Thermocouple Connectors Type K / J




1. Thermocouple Connector​ Brief Introduction


Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.




2. Thermocouple Connector Feature



Calibration: Type K, J, E, T, N, S, R, PT100
Body material: Thermoplastic or ceramic
Standard of color: ANSI, IEC, JIS
Max. temp.: 200C OR 650C


3. Thermocouple Connector Parameter.


Wire size



  • Accepts wires from 0.2 mm to 2.0 mm.
  • Maximum cable diameter 8.0 mm.


Max. Temperature



  • 200 Deg. C for thermoplastic body
  • 650 Deg. C for ceramic body

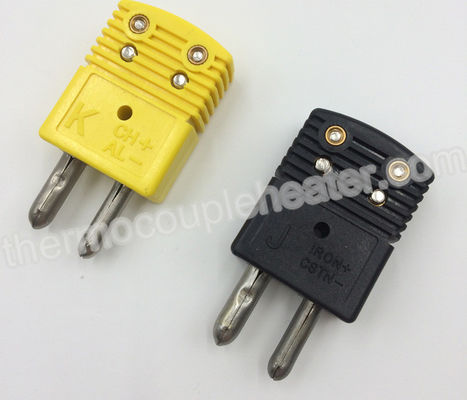

Standard Male And Female RTD Thermocouple Connectors Type K / J

Standard Male And Female RTD Thermocouple Connectors Type K / J

Mark

Material

Color

K

Nickel chrome - nickel silicon

yellow (ANSI), green (IEC)

J

Iron-copper nickel

Black

N

Silicon nickel chrome - nickel silicon magnesium

Orange

T

Copper - copper nickel

blue

E

Copper nickel- chrome nickel

purple

R/S

Copper - copper nickel

green

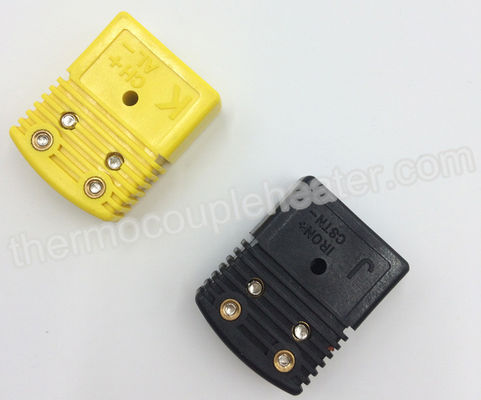

Standard Male And Female RTD Thermocouple Connectors Type K / J



4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


5. Thermocouple Connector Connector



  • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
  • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
  • Low MOQ: It can meet your promotional business very well.
  • OEM Accepted : We can produce any your design as long as you provide us the drawing.
  • Good Service : We treat clients as friend.
