Type K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple Connector

China Type K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple Connector supplier

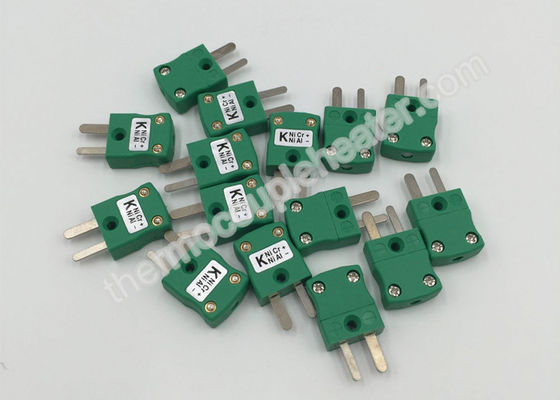

Large Image :  Type K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple Connector

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Thermocouple Mini Connectors

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Thermocouple Mini Connectors Temperature Range Range: 0--600 Centigrade
Materials: Nickel-plated Iron Types: K, S, N, J, T, E
Usage: Industrial, Thermocouple Accessories Material: Yellow, Black, White,
Conductor Material:: Chromel, Alume Application: Industria
High Light:

thermocouple accessories

,

thermocouple assemblies

Type K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple Connector




1. Thermocouple Connector​ Brief Introduction


Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.


2. Thermocouple Connector Characteristics



  1. Solid pins and hollow pins are both available, offer good contact and competitive price.
  2. Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
  3. Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
  4. Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
  5. Thermoplastic body and ceramic material body are both available.
  6. Original thermocouple alloy material pins, and spring loaded inserts.
  7.  Pins are polarized


3. Thermocouple Connector Parameter.



  1. Calibration:K,N,E,J,T,B,R,S
  2. Outer diameter:0.5mm ~ 12.7mm
  3. Sheath material: SS321,SS316,Inconel600
  4. Simplex,dual ,triplex and multipoint
  5. Moisture sealant to be applied at lead ends.
  6. Thermocouple to meet ASTM E230-03 standard temperature standard tolerances.

Type K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple ConnectorType K/J/E/N/T/R/S High Temperature Standard and Mini Thermocouple Connector





4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.
