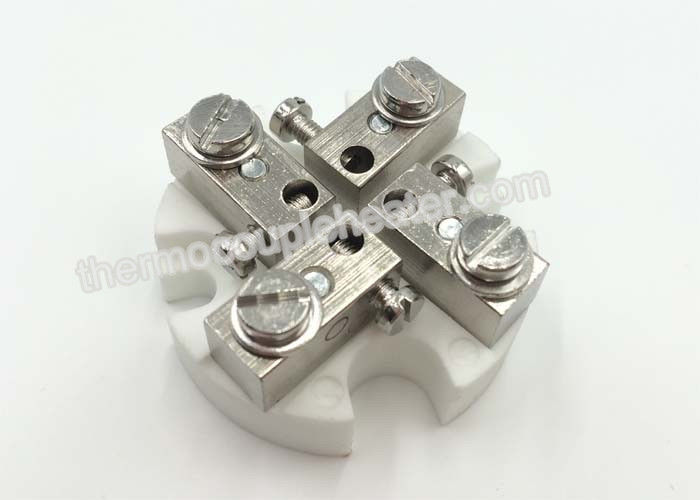

Ceramic Terminal Block D-4P-CS For Industry Thermocouple Head Connection

China Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection supplier
Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection supplier Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection supplier Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection supplier

Large Image :  Ceramic Terminal Block D-4P-CS For Industry Thermocouple Head Connection

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Terminal Block

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Thermocouple Conenction Block Temperature Range Range: 0--550 Centigrade
Materials: Ceramic, Steatite Theory: Temperature Sensor
Usage: Industrial, Thermocouple Accessories Types: 2-6 Pins
Warranty: 6 Months Application: Industrial
High Light:

thermocouple accessories

,

thermocouple assemblies

Ceramic Terminal Block D-4P-CS For Industry Thermocouple Head Connection





1. Conenction Block Brief Introduction



Terminal block (also called connection blocks, connection board), material is ceramic, means terminating the

process sensor (thermocouple, RTD or other transducers or sensors) inside the thermocouple head. We

supply more than 50 different models, such as KNE, KSE, KD, MAA & NAA series terminal blocks in ceramic

and bakelite in 2 poles, 3 poles, 4 poles and 6 poles types.



Wuhan Global Metal have more models on offer, European styles and American styles, and also offer very

competitive conditions to develop new models.



2. Conenction Block Characteristics



  • Terminals material: nickel coated brass.
  • Screws material: stainless steel, nickel coated iron.
  • Available types: 40mm, 33mm, 27mm, 36mm, 21mm, 46mm.
  • Standard dimensions fit various connection heads
  • Ceramic material: talc powder & ole fin, 92% Al2O3, 99% Al2O3.
  • Bakelite material blocks are available, black colour.





Strength of Electric breakdown strength

15—20KV/mm

Coefficient of linear expansion

(6.5—8)×

Tolerance of size

≤±0.1mm



Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection

Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection



4. Conenction Block Application



Widely used in power supply connecting, top grade sockets and sockets for special industry, power supply,

transformer, instrument, TV set, autocar ect.



It is ideal choice for customer in different industries.



5. Transportation



Ceramic Terminal Block  D-4P-CS  For Industry Thermocouple Head Connection
